3-Position Printed Circuit Board Connector

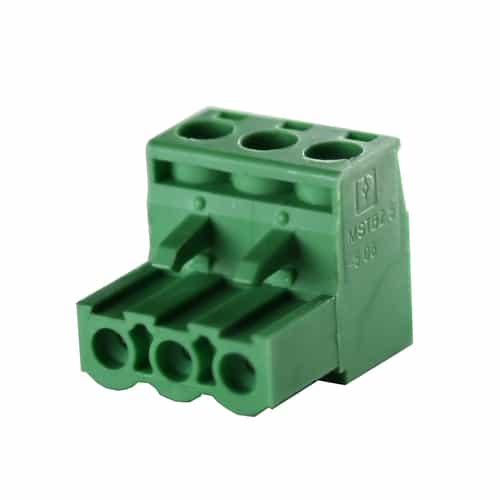

Phoenix Contact 1757022 is a 3-position pluggable terminal block connector for printed circuit boards (PCBs). It is rated for a nominal current of 12 A and a voltage of up to 320 Volts AC. This connector features a 5.08 mm pitch and utilizes a screw connection system, accommodating wire sizes ranging from 12 to 24 AWG. Thanks to its maximum contact force, this connector has a low temperature rise.

General Specifications:

• Product type: PCB connector
• Product family: MSTB 2,5/..-ST
• Product line: COMBICON Connectors M
• Type: Standard
• Number of positions: 3
• Pitch: 5.08 mm
• Number of connections: 3
• Number of rows: 1
• Number of potentials: 3
• Mounting flange: without

Electrical Properties:

• Nominal current IN: 12 A
• Nominal voltage UN: 320 V
• Contact resistance: 1.3 mΩ
• Rated voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Rated voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV

Connection Technology:

• Type: Standard
• Connector system: COMBICON MSTB 2,5
• Nominal cross section: 2.5 mm²
• Contact connection type: Socket

Interlock:

• Locking type: without
• Mounting flange: without

Conductor Connection:

• Connection method: Screw connection with tension sleeve
• Conductor/PCB connection direction: 0 °
• Conductor cross section rigid: 0.2 mm² ... 2.5 mm²
• Conductor cross section AWG: 24 ... 12
• Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm²
• Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 2.5 mm²
• 2 conductors with same cross section, solid: 0.2 mm² ... 1 mm²
• 2 conductors with same cross section, flexible: 0.2 mm² ... 1.5 mm²
• 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm²
• 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm²
• Cylindrical gauge a x b / diameter: 2.8 mm x 2.0 mm / 2.4 mm
• Stripping length: 7 mm
• Drive form screw head: Slotted (L)
• Tightening torque: 0.5 Nm ... 0.6 Nm

Specifications for ferrules without insulating collar:

• Recommended crimping tool: 1212034 CRIMPFOX 6

Specifications for ferrules with insulating collar:

• Recommended crimping tool: 1212034 CRIMPFOX 6

Material Data - Contact:

Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material: Cu alloy
Surface characteristics: hot-dip tin-plated
Metal surface terminal point (top layer): Tin (5 - 7 µm Sn)
Metal surface contact area (top layer): Tin (5 - 7 µm Sn)

Material Data - Housing:

• Color (Housing)    green: (6021)
• Insulating material: PA
• Insulating material group: I
• CTI according to IEC 60112: 600
• Flammability rating according to UL 94: V0
• Glow wire flammability index GWFI according to EN 60695-2-12: 850
• Glow wire ignition temperature GWIT according to EN 60695-2-13: 775
• Temperature for the ball pressure test according to EN 60695-10-2: 125 °C

Dimensions:

• Pitch: 5.08 mm
• Width [w]: 15.24 mm
• Height [h]: 15 mm
• Length [l]: 18.3 mm
