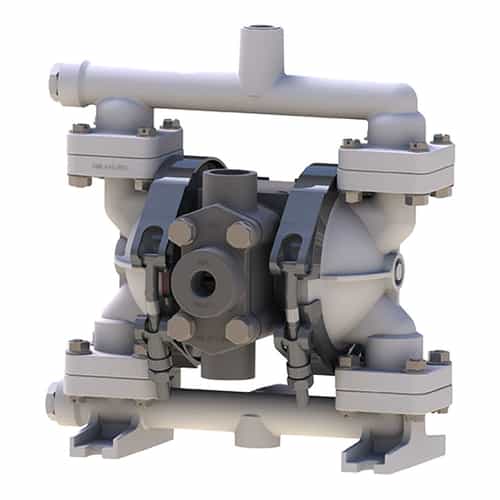

Sandpiper PB1/4TS4PP Air-Operated Double Diaphragm Pump, 1/4 in. Inlet, 5 GPM, Santoprene Check Valve, Polypropylene/PTFE Construction
Brand:
Mfr. Model #:
PB1/4TS4PP
KR Part #:
SP04PS
Weight:
4.13 lbs
Low Inventory Get It Today
Sandpiper Pumps feature an externally serviceable air distribution system and all-bolted construction. Self-priming, with seal-less design and corrosion-resistant materials that make the pumps ideal for car wash and pressure wash usage. Features a Santoprene check valve and polypropylene construction.
Prop 65
Technical Specifications
Max PSI: 100
Min Temperature: 32 degrees F
Max Temperature: 180 degrees F
Max GPM: 5
Product Description
Sandpiper Ball Valve Pump with Santoprene Check Valves
Ultra-compact and efficient, the lightweight Sandpiper PB1/4TS4PP
Air-Operated Double Diaphragm Pump is an excellent solution for everyday car wash pumping needs. Durable construction provides reliability, while an externally serviceable main air valve allows for easy servicing. Good chemical resistance, capable of handling almost every car wash and pressure wash chemical. The PB1/4TS3PP features a Santoprene check valve and polypropylene construction.
PB1/4TS4PP Specifications
- Maximum Flow: 5 GPM (15 LPM) @ 6 CFM
- Maximum Operating Pressure: 100 PSI (7 bar)
- Minimum Operating Temperature: 32 F (0 C)
- Maximum Operating Temperature: 180 F (82 C)
- Port Size: 1/4" NPT
New Air Valve Design
Effective May 2024, Sandpiper PB1/4 Pumps will include a new and improved air valve assembly that includes a more reliable sleeve and spool retainer using staple instead of the original snap ring. The new staple retainer clip holds the air valve cap more securely and is more clearly visible. Engagement is more robust and reduces the possibility of incorrect or loose installation. Newly designed parts include the air valve body, air inlet cap, gasket, and retainer. All other components and specifications will remain the same.
