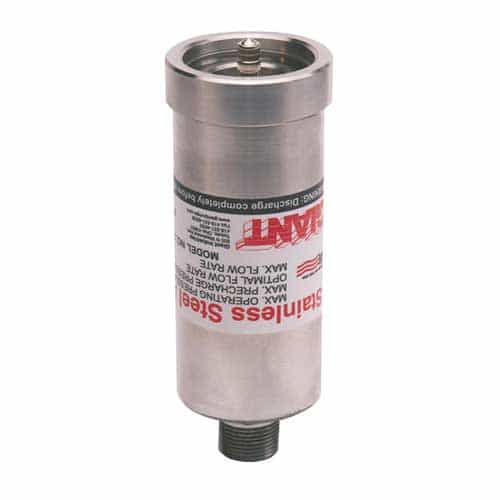

Giant Pumps 22050A-5100 Stainless Steel Pulsation Dampener, 13 GPM, 1/2 in. MNPT
Brand:
Mfr. Model #:
22050A-5100
KR Part #:
PU22050A-5100
Weight:
5.20 lbs
Usually Ships in 2 Weeks
This is Hazardous Material.
A $38.50 fee may be added to your order.
Stainless steel housing pulsation dampener with a rubber bladder that's precharged with nitrogen.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 13
Max PSI: 3000
Max Temperature: 200 degrees F
Product Description
Pump Vibration Dampener
The Giant 22050A-5100 Pulsation Dampener is a device used with positive displacement pumps to reduce vibration and pulsation during operation. This dampener contains a rubber bladder that is precharged with nitrogen up to 50-60% of the system pressure. This vibration dampener is used to protect equipment and piping in a high-pressure system. Has a rebuildable design for easy service.
- Flow Rate: 13 GPM (49 L/min)
- Maximum Pressure: 3000 PSI (207 bar)
- Pressure Maximum Charge: 1500 PSI (103 bar)
- Maximum Continuous Temperature: 200° Fahrenheit
- Inlet: 1/2" MNPT
- Weight: 5.2 lbs. (2.4 kg)
- 316 stainless steel construction
- Rebuildable design
