Rotary Switches 12 Position 2 Stack
Brand:
Mfr. Model #:
25302A-S
KR Part #:
ST0212
Weight:
1.09 lbs
In Stock
Keep your self serve bays running smoothly by upgrading or swapping out old rotary switches. This Electroswitch 25302A-S is a 12 position, 2 stack switch with a 30 degree dent angle from Series 25.
Product Description

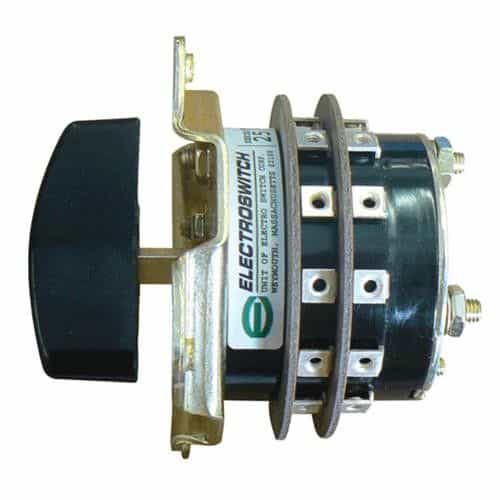

Series 25 12 Position 2 Stack Rotary Switch
For over 50 years Electroswitch products have been specified for use in the most demanding, critical applications in the power industry. This 12 position, 2 stack rotary switch is yet another engineering gem in their vast product portfolio.
The switch features double sided, double wiping, knife-type rotary contacts, silver contact surfaces, terminal screws for easy installation, and a 4 hole mounting plate. A spring returns the knob to it's normal vertical position. Common input taps switch arrangement and positive positioning.
From Series 25, the rotary switch is UL recognized and CSA certified.
Series 25 Rotary Switch Specifications:
- Double Stack
- Metal construction
- Double-rotary action with sturdy plastic knobs
- Mounting hardware included with each rotary switch
- Make Before Break (shorting contacts)
- 12 switch positions
- 10A - 600V continuous rating
- 75A Max making and breaking ability
- 4-Hole waterproof mount
- Pull to turn, spring return knob style
- Solenoid lock
- UL recognized and CSA certified
Product Reviews
Frequently Asked Questions
Question:do these rotary switches require any additional mounting hardware when upgrading from a 1- position switch. I was told that they require studs in the faceplate to hold them? Is this correct?
-
Edward
(11/11/2023)
Response:This switch has a 4-hole waterproof mounting plate and uses 4 terminal screws for easy installation in the faceplate.
