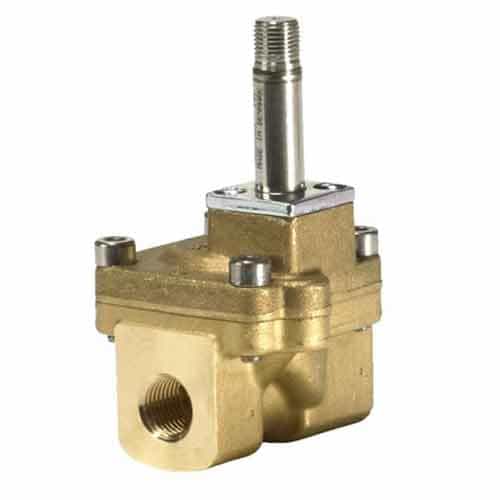

Danfoss 042U6003 Servo-Operated 2 Way Brass Solenoid Valve - 1/4 Inch, 232 PSI
Brand:
Mfr. Model #:
042U6003
KR Part #:
DF042U6003
Weight:
0.05 lbs
Usually Ships in 2 Weeks
Servo operated solenoid valve made by Danfoss. Compatible with 1/2 -inch piping. Tolerates a maximum temperature 140 degrees Fahrenheit and a maximum pressure of 232 PSI.
Technical Specifications
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Orifice: 1/4 inch
Max PSI: 232
Max Temperature: 140 degrees F
Max Temperature: 140 degrees F
Min Temperature: 14 degrees F
Product Description
Car Wash Solenoid Valve
Danfoss 042U6003 is a 2-way servo operated solenoid valve. Made with a brass construction. Features 1/4 - inch NPT piping connections. Orifice measures 6 mm in diameter.
Specifications:
- Actuator: A
- Actuator Size: 19 mm
- Actuator Size [in]: 0.35 in
- Actuator System [mm]: 9 mm
- Ambient Temperature Max. [°C]: 50 °C
- Ambient Temperature Max. [°F]: 122 °F
- Body Material: Brass
- Connection Internal/External: Internal
- Connection Material: Brass
- Connection Size [in]: 1/4
- Connection Standard: ANSI/ASME B1.20.1
- Connection Type: NPT
- Cv Value [gal/min]: 1.16 gal/min
- Differential Pressure [bar] [Max]: 16 bar
- Differential Pressure [bar] [Min]: 0.2 bar
- Differential Pressure [PSI] [Max]: 232 PSI
- Differential Pressure [PSI] [Min]: 2.9 PSI
- Est. Time to Close, Water [ms]: 250 ms
- Est. Time to Open, Water [ms]: 40 ms
- Flow Direction: Single-Flow
- Flow Direction Indicator: Embossed 1-Way Arrow
- Fluid Group: I
- Function: NC
- Kv value [m_/h]: 1 m_/h
- Max media viscosity [cSt]: 50 cSt
- Max. test pressure [bar]: 24 BAR
- Max. test pressure [PSIG]: 348 PSIG
- Max. Working Pressure [BAR]: 16 BAR
- Max. Working Pressure [PSIG]: 232 PSIG
- Media Recommendations: Compressed Air, Oil
- Media Tolerance Comments: Neutral Media
- Medium temperature range [°C] [Max]: 60 °C
- Medium temperature range [°C] [Min]: -10 °C
- Medium temperature range [°F] [Max]: 140 °F
- Medium temperature range [°F] [Min]: 14 °F
- Number of Ways: 2/2
- Operation: Servo-operated (diaphragm)
- Orifice size [mm]: 6 mm
- Orifice size fraction [in]: 1/4 in
- Parts Program Name: EV220A
- Seal Material: NBR
