AR North America RK1528HN Solid Shaft Pump - 3.96GPM, 4000PSI, 1450RPM
Brand:
Mfr. Model #:
RK1528HN
KR Part #:
ARRK1528HN
Weight:
20.60 lbs
Availability:
3

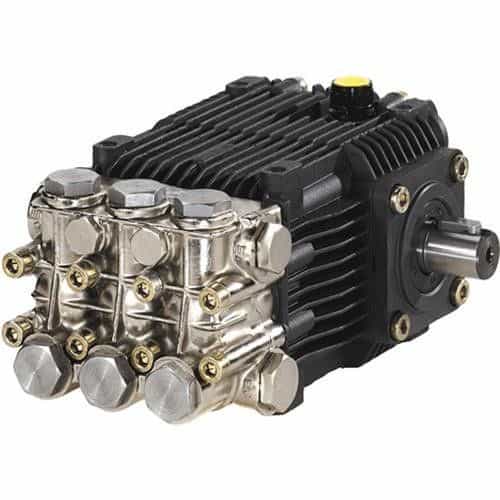

This solid shaft commercial triplex plunger pump reaches a maximum pressure of 4000 PSI. N version with a gas engine flange.
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 15 ounce
Horsepower: 11
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Shaft Diameter: 24 millimeter
Stroke: 14.6 millimeter
RPM: 1450
Max PSI: 4000
Max GPM: 3.96
Max Temperature: 140 degrees F
Product Description
3.96 GPM, 4000 PSI, 1450 RPM
AR RK Series plunger pumps are great for high pressure washing applications. The RK15.28HN model includes thick solid ceramic plungers for long life and durability. It is designed for gearbox, belt drive, or coupling drive systems, electric motor 182-184 frame driven systems, or gasoline engine driven systems. It features anodized, precision cast cooling fins for maximum heat dissipation. Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life.
Specifications:
- One-piece connecting rods for strength
- Ultra Form valve cages for long life
- Maximum flow: 3.96 GPM
- Maximum pressure: 4000 PSI
- Power: 11 EBHP
- Discharge thread: 3/8" F
- Solid shaft
- AR North America model # RK15.28HN
