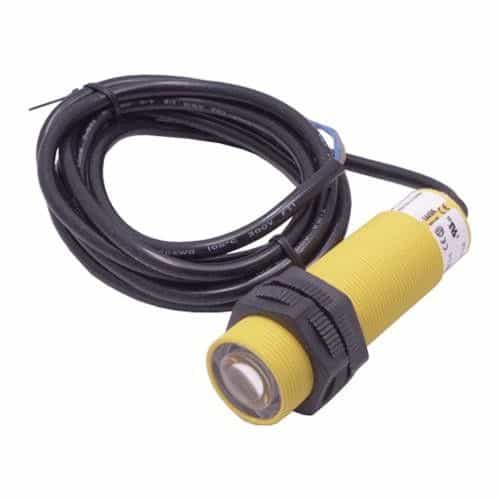

30 mm Barrel Sensor

This sensor is made with thermoplastic. Features a 500 ft sensing range. Engineered to exceed NEMA 6P (IP67) ratings making this sensor an excellent choice for wash-down environments. Input for power is compatible with 10-30 V DC or 12-240 V AC. EZ-BEAM¨ technology provides reliable sensing without the need for adjustment.

Specifications:

• Cable Length (m): 2

• Sensing Beam: Infrared LED

• Sensing Mode (General): Opposed

• Sensing Mode (Detailed): Emitter

• Housing Style: Barrel

• Primary Housing Material: Thermoplastic

• Max Sensing Distance (mm): 150000

• Outputs: N/A

• Power Supply/Supply Voltage: 10-30 V dc or 12-240 V ac

• Connection: Cable

• Quick Disconnect Type: No QD

• Operation: N/A

• Min Op. Temp. (°C): -40

• Max Op. Temp. (°C): 70

• Output response time (ms): N/A

• Special Feature: Intrinsically Safe: No

• Special Feature: Remote Teach: No

• Special Feature: Water Detection: No

• Delay at Power-up (ms): N/A

• Repeatability (µs): N/A

• Number of Pins: 2

• IP Rating: IP67

• NEMA Rating: NEMA 6P

• Max Op. Relative Humidity [%]: 90% @ 50°C

• Lens Material: Acrylic

• Adjustments: N/A

• Barrel Diameter (mm): 30

• Indicator: LEDs

• Opposed Mode Emitter/Receiver: Emitter

• Feature: Timing (Hold/Delay): No

• Feature: Encapsulated: Yes

• Feature: Hazardous Area: No

• Feature: Audible: No

• Feature: Chemical Resistant: No

• Device Net: No

• IO Link: No


Features:

• Thermoplastic barrel housing

• Very high excess gain; 150 m (500 ft.) sensing range; 880 nm Infrared LED

• Positive sealing eliminates even capillary leakage; lens is quad-ring sealed; exceeds NEMA

• 6P (IP67) Rating - ideal for equipment wash-down environments

• EZ-BEAM¨ technology provides reliable sensing without the need for adjustment

• Modulation frequency "A" is standard; frequencies "B" and "C" also available for

• preventing crosstalk in multiple-sensor applications and opposed receiver frequencies must match)

• AC- and DC-operated receiver models available; emitters feature Universal voltage

• Range for all models: 150 m (500 ft.)
