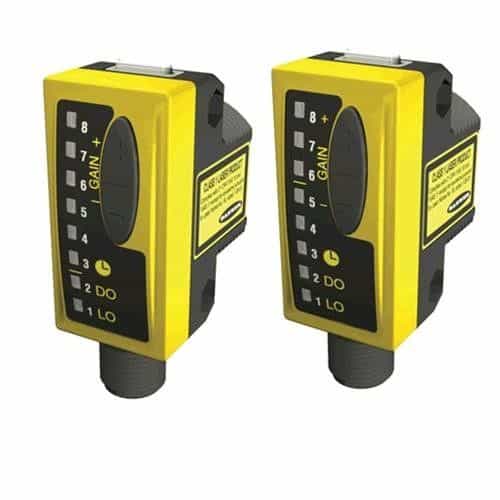

Thermoplastic Sensor

This sensor is made with thermoplastic housing and features a 700 ft sensing range. Engineered to exceed NEMA 6P (IP67) ratings making this sensor an excellent choice for wash-down environments. Compatible with 10-30 VDC power connections. Unique lens design sheds water and debris reducing lens contamination. Lens is created with a material engineered to survive impacts, washdowns and harsh cleaning chemicals.

Specifications:

• Cable Length (m): 2
• Sensing Beam: Infrared LED
• Sensing Mode (General): Opposed
• Sensing Mode (Detailed): Receiver
• Housing Style: Rectangular w/M30 Mount
• Primary Housing Material: Thermoplastic
• Input/Output: Discrete
• Max Sensing Distance (mm): 213000
• Outputs: Bipolar (NPN & PNP)
• Power Supply/Supply Voltage: 10-30 V dc
• Connection: Cable
• Quick Disconnect Type: No QD
• Operation: Light Operate
• Min Op. Temp. (°C): -20
• Max Op. Temp. (°C): 70
• Output response time (ms): 5
• Special Feature: Intrinsically Safe: No
• Special Feature: Remote Teach: No
• Special Feature: Water Detection: No
• Sensing Beam Wavelength: 875
• Delay at Power-up (ms): 100
• Repeatability (µs): 5000
• Number of Pins: 5
• IP Rating: IP67
• NEMA Rating: NEMA 6
• Max Op. Relative Humidity [%]: 95% @ 50°C
• Lens Material: Zeonex
• Adjustments: N/A
• Barrel Diameter (mm): 30
• Indicator: Bargraph
• Opposed Mode Emitter/Receiver: Receiver
• Feature: Timing (Hold/Delay): No
• Feature: Encapsulated: Yes

Features:

• Infrared beam with high excess gain Ñ range of over 213 m (700 ft)
• Excellent noise immunity
• Excellent for applications where high sensing power is required due to long sensing range or contamination on lenses
• Excellent optical performance throughout the sensing range
• Easy two frequency selection to help prevent crosstalk
• Easy-to-read operating status indicators with bar graph display
• Bipolar discrete outputs, PNP and NPN
• Light Operate and Dark Operate models available
• Models available with 2 m or 9 m (6.5 ft or 30 ft) cable or quick-disconnect fitting
• Tough ABS housing is rated IEC IP67; NEMA 6P; QD models are washdown tested to DIN 40050-9 (IEC IP69K)
• Unique water/debris-shedding lens design reduces lens contamination; lens material survives impact, washdown and cleaning chemicals
• Encapsulated electronics
• Compact housing Ñ mounting versatility via popular 30 mm threaded barrel or side-mount

Applications:

• Vehicle Profiling (In-Bay Automatic/Rollover):  Accurately determines vehicle front and back bumper
  position. Allows gantry to travel minimal distance to ensure a quick, close wash. Helps prevent vehicle
  damage. Most powerful "burn-thru" sensor, without requiring an external amplifier.
• Entry/Exit Doors (In-Bay Automatic/Rollover and Conveyorized Tunnel): Verifies that a vehicle has either entered or exited the car wash. Prevents doors from closing on the vehicle. Dual sensors may be used: one inside and one outside.
• Soap and Rinse Activation (Conveyorized Tunnel): Detects front of vehicle and triggers soap/foam jets and triggers rinse cycle. Remains active while vehicle is blocking the sensor.
• Dryer Activation (Conveyorized Tunnel): Triggers dryers to turn on and off. May control dryer distance from vehicle.
