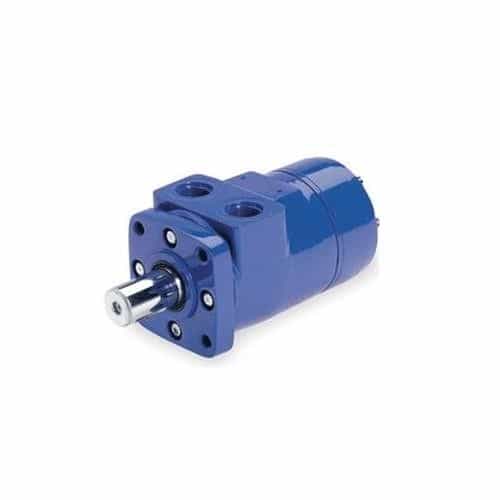

Char-Lynn 101-1003-009 Hydraulic Orbital Motor

The Char-Lynn 101-1003-009 is a powerful hydraulic orbital motor from the H-Series. Ideal for medium duty applications requiring low speed and high torque, this high-efficiency motor has a maximum speed of 585 RPM and a 5.9 cubic inch per revolution displacement. It boasts advanced spool valve technology and state-of-the art georotors. Direction of the shaft rotation can be easily and smoothly controlled throughout the motor's speed range. Costly mechanical components can be eliminated as the 101-1003-009 can be used a direct drive motor for your equipment.

101-1003-009 Key Specifications

• Speed: 585 RPM
• Maximum Flow Rate: 15 GPM
• Output Torque: 1368 inch-pound
• Port Size: 1/2" NPTF dryseal pipethread
• Maximum Pressure: 1800 PSI
• Displacement: 5.9 CID
• Main Port Style: Sideport aligned
• Keyed Shaft Size: 1" diameter hollow shaft x 1/2" straight
• Mounting Type: "B" 4-bolt square mounting flange
• Motor Size: 95
• Orbital Gear-Wheel Set: Standard
• Orbital Gear-Wheel Set Type: Georotor
• Shaft Key: Woodruff key
• Shaft Seal: NBR
• Valve System: Spool valve
• Series: H-Series
• Char-Lynn item #101-1003-009

Features and Benefits

• Time-tested Char-Lynn drive set
• 3 moving components (gerotor-star, drive, and shaft)
• Optimized drive running angle
• 3-zone pressure design (inlet, return and case)
• High efficiency
• Powerful compact package
• Extended leak-free performance

Common Uses for the Char-Lynn 101-1003-009

• Brushes in automatic car washes
• Conveyors
• Agricultural augers
• Harvesters
• Seeders
• Food processing
• Railroad maintenance equipment
• Machine tools
• Industrial sweepers and floor polishers
• Saw mill works
• Turf equipment
• Concrete and asphalt equipment
• Skid steer attachments
• Winch and steering
• Marine hauling

Important Notes for Safe and Effective Use

• Simultaneous maximum torque and maximum speed NOT recommended
• Recommended Fluids: Premium quality, anti-wear type hydraulic oil
• Recommended Operating Temperature: -30° Fahrenheit to 180° Fahrenheit
• Recommended Filtration: Per ISO cleanliness code 4406, level 20/18/13
• Thermal Shock Warning: Do not operate the motor with fluid that is 70° F or more above the motor temperature
• Minimum Delta Pressure Warning: Motors must not run with equal inlet and outlet pressure 50 PSID minimum delta pressure between motor ports is required at all times (expect when switching direction of rotation)
