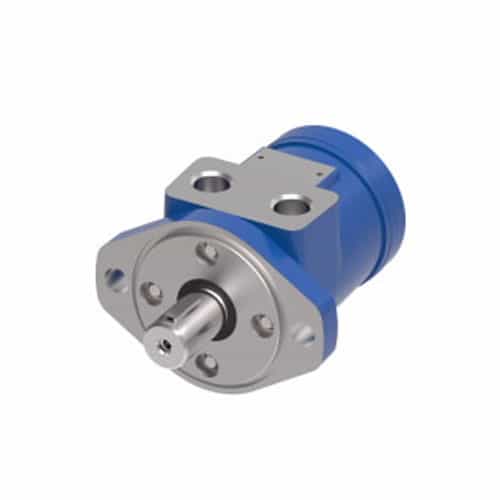

Char-Lynn 101-1025-009 H-Series Motor - 12 GPM, 696 RPM, 1800 PSI
Brand:
Mfr. Model #:
101-1025-009
KR Part #:
CL101-1025-009
Weight:
8.00 lbs
Usually Ships in 2 Weeks
The Char-Lynn 101-1025-009 H-series gerotor motor is designed with state of the art technology! Great for use when powering car wash brushes.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 12
Max PSI: 1800
Max Temperature: 180 degrees F
RPM: 696
Shaft Diameter: 1 inch
Product Description
696 RPM Motor
This pump produces an optimized drive running angle using just three moving components- the gerotor star, drive, and shaft - to deliver high efficiency performance. Use the H series motor when powering car wash brushes, agricultural harvesters, food processing equipment, and more.
Specifications:
- H-Series motor
- Medium duty performance
- Three moving parts: gerotor-star, drive, and shaft
- 2-bolt flange mount
- Maximum operating temperature: 180° F
- Maximum flow rate: 12 GPM continuous; 14 GPM intermittent
- Maximum pressure: 1800 PSI continuous; 2400 PSI intermittent
- Maximum speed: 696 RPM (continuous)
- Maximum torque: 650 inch pounds continuous; 876 inch pounds intermittent
- 1/2-14 NPTF motor port
- 1/2-14 NPTF size 8MP inlet and outlet
- 1" straight shaft
- Char-Lynn item #101-1025-009
Please note: intermittent operation refers to running the pump no more than 10% of each minute.
