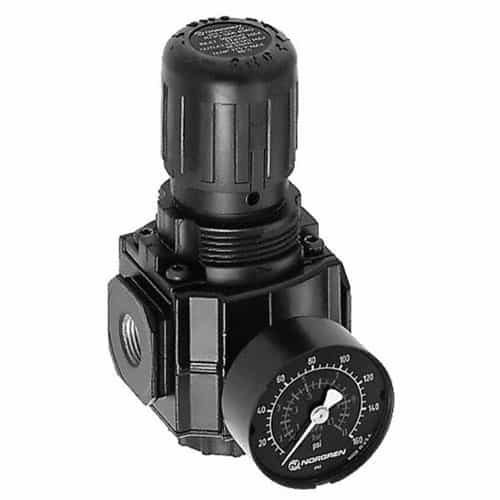

Norgren R73G-2AK-RMG Excelon R73G Series Pressure Regulator with Gauge - 300 PSI, 1/4" PTF Ports
Brand:
Mfr. Model #:
R73G-2AK-RMG
KR Part #:
REN2219
Weight:
1.60 lbs
In Stock
The Norgren R73G-2AK-RMG Regulator is used with compressed air and neutral gases. This R73G regulator features Excelon design that allows for in-line or modular installation. Balanced valve minimizes the effect of variation in the inlet pressure on the outlet pressure. 300 PSI maximum pressure, 91 scfm flow, 1/4" PTF ports, 5-150 PSIG outlet pressure adjustment range. Pressure gauge and adjustment knob included.
Technical Specifications
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
CFM: 91
Min Temperature: -30 degrees F
Max Temperature: 175 degrees F
Max PSI: 300
Product Description
Norgren R73G Regulator with Pressure Gauge
The Norgren R73G-2AK-RMG is a pressure regulator ideal for compressed air and neutral gases. It features Excelon design that allows for in-line or modular installation. Its balanced valve minimizes the effect of variation in the inlet pressure on the outlet pressure. Handles up to 300 PSI maximum pressure and 175° Fahrenheit. This R73G regulator includes a pressure gauge and adjustment knob.
R73G-2AK-RMG Details
- Medium: Compressed air, neutral gases
- Maximum pressure: 300 PSI
- Operating Temperature: -30° to 175° Fahrenheit
- Flow: 91 scfm
- Port size: 1/4" PTF
- Pressure gauge included
- Adjustment knob included
- Outlet Pressure Adjustment Range: 5 to 150 PSIG
- Body: Aluminum
- Bonnet: Zinc
- Valve: Acetal
- Elastomers: Nitrile
- Valve: Polypropylene and TPV
