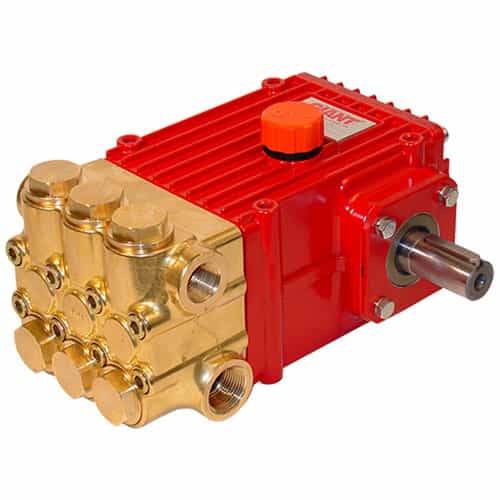

Giant Pump P455BR Triplex Pump - 5.5 GPM, 4350 PSI, 1450 RPM, Right Shaft
Brand:
Mfr. Model #:
P455BR
KR Part #:
PUP455BR
Weight:
38.00 lbs
Rugged forged brass manifold pump with bronze connecting rods and solid ceramic plungers. Nitrile seals with fabric reinforcing for increased longevity. 6.6 GPM max, at up to 3625 PSI.
Technical Specifications
Max GPM: 5.5
Max PSI: 5100
Max Temperature: 160 degrees F
RPM: 1450
Inlet Port: 3/4 inch
Outlet Port: 1/2 inch
Bore: 18 millimeter
Stroke: 20 millimeter
Shaft Diameter: 28 millimeter
Product Description
P455B Right Shaft
The P435B Giant Pump features an aluminum crankcase with sight glass and vented dipstick. Crankshaft is forged and through-hardened for heightened reliability. Also features bronze connecting rods, hardened stainless steel plunger bases, solid ceramic plungers, nitrile seals (with fabric reinforcing), stainless steel valves, and forged brass manifold. Able to switch between continuous and intermittent duty.
Specifications:
- Maximum GPM: 5.5 GPM
- Maximum continuous discharge pressure: 4350 PSI
- Maximum intermittent discharge pressure: 5100 PSI
- Maximum inlet pressure: 145 PSI
- Maximum temperature: 160 degrees Fahrenheit
- Maximum speed: 1450 RPM
- Plunger diameter: 18 mm
- Inlet ports: (2) 3/4" BSP
- Discharge ports: (2) 1/2" BSP
- Crankcase oil capacity: 30.4 fl. oz.
Materials:
- Manifold: forged brass
- Plungers: solid ceramic oxide
- Valves: high grade stainless steel
- Seals: nitrile with fabric reinforcing
- Gear end: aluminum
