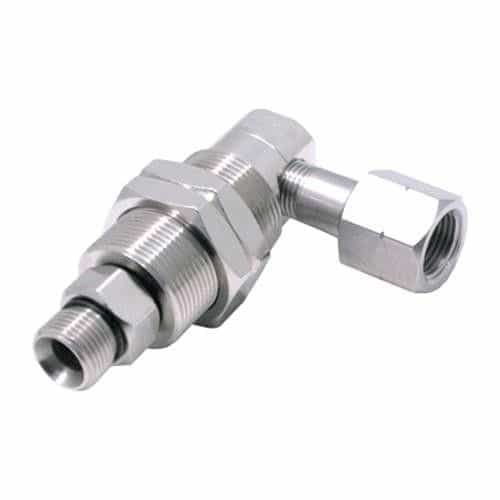

Mosmatic 37.463 Rotary Union Swivel DXG With Ceramic Seals - 90 Degree, 2500 PSI, 2000 RPM, 3/8 Inch NPTF, 3/8 Inch M
Brand:
Mfr. Model #:
37.463
KR Part #:
SWM37463
Weight:
1.50 lbs
This is a self-rotating swivel constructed with ceramic seals and made with nickel plated brass. Utilizes a seal failure warning system. Handles pressures up to 2500 PSI and speeds of 2000 RPM.
Technical Specifications
Max PSI: 2500
RPM: 2000
Max Temperature: 250 degrees F
Product Description
Triple Bearing Swivel
Mosmatic 37.463 rotary union utilizes ceramic seals and features a seal failure warning system through its weep holes. Withstands a maximum pressure of 2500 PSI and reaches a maximum speed of 2000 RPM. Swivel is crafted using nickel plated brass. Used for surface cleaners, parts washer, tire cleaners, high pressure, self-rotating applications.
Specifications:
- Pressure: 2500 PSI (17 Mpa)
- Temperature: 40 F-250 F
- RPM: Max. 2000 RPM
- Body: DXG: Brass, Nickel Plated
- Seal: Ceramic
- Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing
- Throughput: pH 3-12
- Medium: Filtered 10 Microns, Compressed Air (290 Psi)
Features:
- High Speed, Triple Bearing Systems
- Bulkhead Fitting for Mounting
- Corrosion Resistant
- Highest Quality and Precision
- Maintenance Free
Dimensions:
- G1 3/8" NPTF
- G2 G3/8" M
- NW 1/4"
- SW1 0.87
- SW2 0.75
- SW3 1.34
- L1 3.30
- L2 0.39
- Weight 13.4oz
Applications:
- Surface Cleaners
- Parts Washers
- Tire Cleaners
- High Rpm
- Self-Rotating Applications
