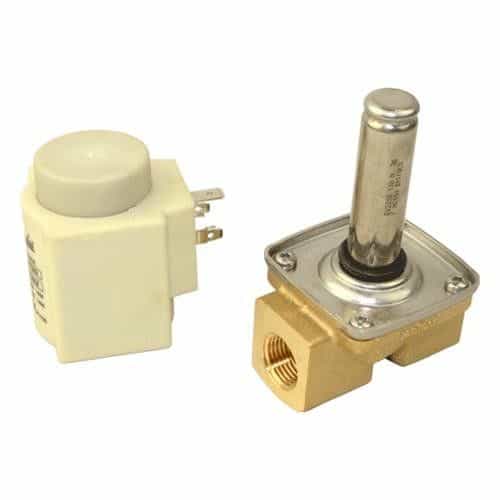

Danfoss 032U758536 Brass Servo-Operated Normally Closed Solenoid Valve - 120 VAC Spade DIN, 3/8 NPT F x F, 142 PSI, 1.75 GPM

Brand:
Danfoss Valves
Mfr. Model #:
032U758536
KR Part #:
DF032U758536
Weight:
1.48 lbs
Availability:
5

Low Inventory Get It Today

MSRP
$132.50
Now Only!
$84.94
Normally closed servo-operated solenoid valve. Equipped with a Spade DIN connector for 120 VAC electrical connections. Handles a maximum pressure of 142 PSI.
More Info...



Technical Specifications

Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max PSI: 142
Voltage AC: 120
Max GPM: 1.75
Max Temperature: 212 degrees F
Min Temperature: 32
Orifice: 3/8 inch

Product Description

3/8 NPT Electric Solenoid Valve

The Danfoss 032U758536 is a normally closed solenoid valve with a servo-operated design to control the flow of water, fluids, and chemicals in your car wash. Equipped with a DIN Spade connector that is compatible with 120 VAC electrical connections. Pipe connections measure 3/8 inch NPT female x female. Brass constructed body is ideal for wet environments because of it's corrosion resistance.


Specifications:
  • EAN: 5702428460019
  • Actuator: B
  • Actuator size: 13.5 mm
  • Actuator size [in]: 0.53 in
  • Actuator system [mm]: 13.5 mm
  • Ambient temperature max. [°C]: 50 °C
  • Ambient temperature max. [°F]: 122 °F
  • Approval: CE
  • DNVGL-CG-0339
  • Body material: Brass
  • Coil option: Clip-on
  • Coil type: BY
  • Connection Internal/External: Internal
  • Connection material: Brass
  • Connection size [in]: 3/8
  • Connection standard: ANSI/ASME B1.20.1
  • Connection type: NPT
  • Cv value [gal/min]: 1.75 gal/min
  • Differential pressure [bar] [Max]: 9.791 bar
  • Differential pressure [bar] [Min]: 0.1 bar
  • Differential pressure [psi] [Max]: 142 psi
  • Differential pressure [psi] [Min]: 1.45 psi
  • Electrical connection: Spade DIN 43650-A
  • Enclosure rating IP: IP00
  • Est. time to close, water [ms]: 300 ms
  • Est. time to open, water [ms]: 50 ms
  • Flow direction: Single-flow
  • Flow direction indicator: Embossed 1-way arrow
  • Fluid Group: I
  • Frequency [Hz]: 50/60 Hz
  • Function: NC
  • Kv value [m³/h]: 1.5 m³/h
  • Max media viscosity [cSt]: 50 cSt
  • Max. test pressure [bar]: 50 bar
  • Max. test pressure [psig]: 725 psig
  • Max. Working Pressure [bar]: 24.1 bar
  • Max. Working Pressure [psig]: 350 psig
  • Media recommendations: Oil,Comp.Air,Vacuum
  • Media tolerance comments: Neutral media
  • Medium temperature range [°C] [Max]: 100 °C
  • Medium temperature range [°C] [Min]: 0 °C
  • Medium temperature range [°F] [Max]: 212 °F
  • Medium temperature range [°F] [Min]: 32 °F
  • Number of ways: 2/2
  • Operation: Servo-operated (diaphragm)
  • Orifice size [mm]: 10 mm
  • Orifice size fraction [in]: 3/8 in
  • Packing format: Multi pack
  • Parts Program name: EV220B 6 - 22
  • Power consumption [W] 50Hz: 14 W
  • Power consumption [W] 60Hz: 14 W
  • Seal Material: FKM
  • Serviceable: Solenoid valve spare parts
  • Specification key: EV220B 10B N 38F NC000 BY120CS
  • Supply voltage 50Hz Max [V]: 110 V
  • Supply voltage 60Hz Max [V]: 120 V
  • Supply voltage 60Hz Min [V]: 110 V
  • Supply voltage [V] AC: 120 V
  • Type: EV220B
  • Type Designation: EV220B 10
