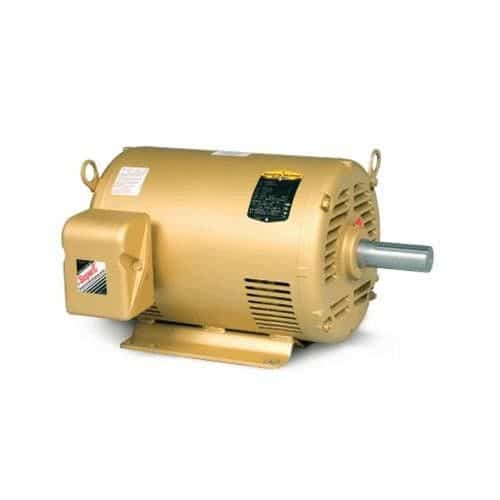

Baldor EM3311T Motor, 7.5HP, 3 Phase, OPSB, Frame 213T
Brand:
Mfr. Model #:
EM3311T
KR Part #:
MBEM3311T
Weight:
94.00 lbs
GTIN:
781568104767
Usually Ships in 2 Weeks
Baldor 7.5 HP motor for high-power performance at your facility. This 3-phase electric motor has a heavy duty frame and copper windings for applications needing continuous or frequent duty. Great for pumps, compressors, fans, conveyors, machine tools, and other general-purpose three-phase applications. 213T Frame, 230/460V AC, 1770 maximum RPM.
Technical Specifications
Horsepower: 7.5
RPM: 1770
Voltage AC: 208-230/460
Phase: Three
Product Description
Baldor 7.5 HP Electric Motor
The Baldor EM3311T is a 7.5 hp electric motor for high-power performance at your facility. Heavy duty frame and copper windings for applications needing continuous or frequent duty. Great for pumps, compressors, fans, conveyors, machine tools, and other general-purpose three-phase applications. Uses an open drip proof design.
Features
- Pressure cast aluminum end plates with ribbed design for rigidity
- Locked drive end bearing
- Heavy gauge steel frame
- Optimized airflow design provides higher horsepower in smaller package
- Open drip proof motor or OPSB
- 91.0% efficiency at 100% load
Specifications
- RPM: 1770
- Horsepower: 7.5
- Phase: Three
- Voltage AC: 230/460
- Max Ambient Temperature: 104°F
Applications
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
UPC:
- 781568104675
