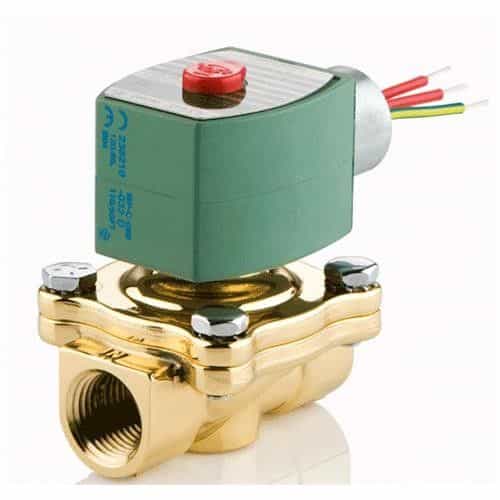

Normally Closed Solenoid Valve

This solenoid valve is equipped with a 2-way function and a normally closed valve configuration. Accepts 1.5-inch piping with a brass constructed body. This valve tolerates fluid temperatures up to 150 degrees Fahrenheit. Handles air, inert gases, light oil, water found in car washes, air compressors, pumps, laundry equipment, and industrial water control applications.

Specifications:

• Valve Configuration: 2-Way Normally Closed
• Inlet Size: 1 1/2"
• Outlet Size: 1 1/12"
• Min. Operating Pressure Differential: 5 PSI
• Max. Operating Pressure Differential Air/Inert Gas: 125 PSI
• Max. Operating Pressure Differential Light Oil: 100 PSI
• Max. Operating Pressure Differential Water: 100 PSI
• Voltage: 24V DC
• Coefficient of Volume: 4.0
• Body Material - Valves: Brass
• Coil Insulation Class: F
• Seal Material - Valves: NBR
• Orifice Dia.: 5/8 in
• NEMA Rating: 1, 2, 3, 3S, 4, 4X
• IP Rating: 66
• Max. Fluid Temp.: 150 Degrees F
• Watts: 11.6 W
• Coil Enclosure: Watertight No Junction Box
• Electrical Connections: 1/2 in Conduit w/18 in Leads
• Overall Length: 2 3/4 in
• Overall Width: 2 5/16 in
• Overall Height: 3 7/16 in
• Center Line Pipe Center Size: 2 7/8 in

Application:

• Air Compressors
• Car Wash
• Industrial Water Control
• Laundry Equipment
• Pumps
