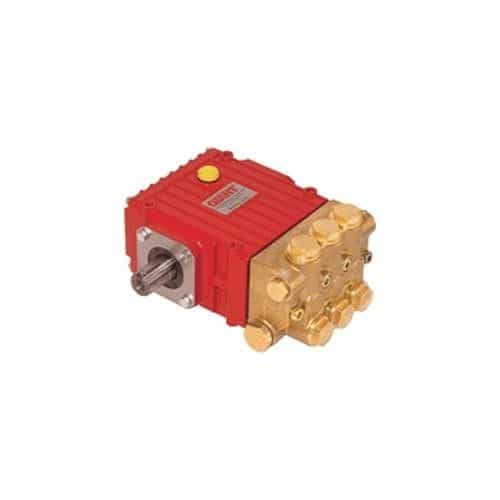

Giant P322R Triplex Plunger Pump - 4.7 GPM, 3000 PSI, 1750 RPM
Brand:
Mfr. Model #:
P322R
KR Part #:
PUP322R
Weight:
16.00 lbs
Made in the USA. Triplex plunger positive displacement pumps with reciprocating plungers for direct or belt drive usage. Aluminum crankcase, solid ceramic plungers, and forged brass manifold for durability.
Technical Specifications
Max PSI: 3000
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max GPM: 4.7
Bore: 18 millimeter
Stroke: 14.1 millimeter
Shaft Diameter: 24 millimeter
Product Description
Giant Triplex Plunger Pump
Giant P322R triplex plunger positive displacement pumps feature reciprocating plungers for direct or belt drive usage. Aluminum crankcase, solid ceramic plungers, and forged brass manifold for durability. Ideal for Car wash, Pressure Wash, Sewer Cleaning, Reverse Osmosis, Water Blasting and much more. Designed for pulley drive or direct-drive applications.
Features
- All pumps feature a 5-Year warranty in car wash and pressure wash applications.
- Lifetime warranty on manifolds due to erosion or freezing.
- Uses Rail Kit No. 1161 (Not Included)
Specifications
- Maximum Flow: 4.7 GPM
- Maximum Pressure: 1750 PSI
- Maximum Temperature: 160°F
- Inlet Port: (2) 1/2" BSP
- Outlet Port: (2) 3/8" BSP
