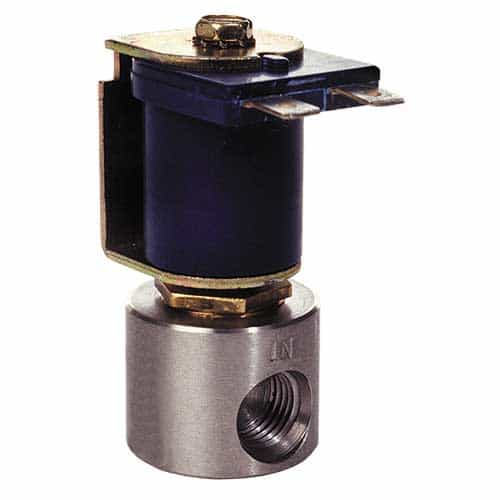

Dema 492S.8.3 Single Station 1/4 in. Valve - No Metering, 24VAC Spade Coil
Brand:
Mfr. Model #:
492S.8.3
KR Part #:
SOD492S24
Weight:
0.60 lbs
In Stock
This direct acting valve is designed for water, air, light oil, noncorrosive, and non-explosive liquid applications.
Prop 65
Technical Specifications
Max PSI: 150
Voltage AC: 24
Product Description
Single Station Direct Acting Valve
With this valve, the stem and plunger assembly opens the port of the valve directly and requires no minimum pressure to operate.
Pipe Size: 1/4" N.P.T. female
- Stainless steel construction
- Non-metering
- Rated for 200 degrees F fluid and 120 degrees F ambient
- CV flow factor .27
- 24VAC spade coil
- Maximum pressure 150 PSI
- 1/8" orifice
- Buna-N seal
