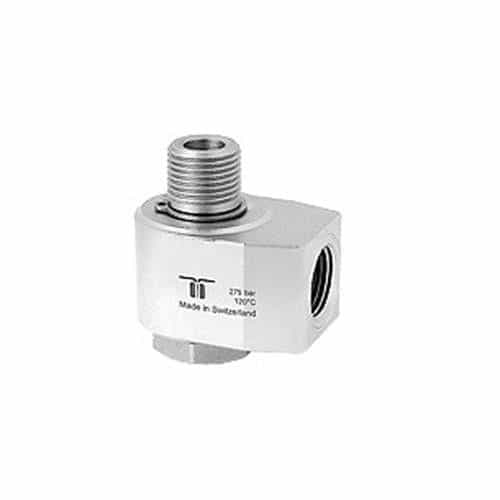

Mosmatic 43.252 Nickel Plated Brass 90 Degree WDB Swivel Rotary Union - 3/8 NPTF x 3/8 NPTM, 4000 PSI, 30 RPM

Brand:
Mfr. Model #:
43.252
KR Part #:
SWM43252
Weight:
0.45 lbs
Low Stock Warning
Add to Cart for Price
A rotary swivel made of pickel plated brass. This union has 3/8" NPTF and 3/8" NPTM connections.



Product Description

Ceiling Boom Rotary Union

The Mosmatic 43.252 swivel is constructed using brass with a nickel-plated coating and a stainless-steel inner part. Equipped with NBR seals. Handles a maximum pressure of 4000 PSI. Endures a maximum temperature of 250 F. Ideal for applications involving ceiling booms, high-pressure hose reels and high-pressure cleaners.

Specifications:
  • Pressure: 4000 PSI (27.5 Mpa)
  • Temperature: 250F
  • RPM: Max. 30 Rpm
  • Body: Brass, Nickel Plated
  • Inner Part: Stainless Steel
  • Seal: O-Ring NBR (Optional: EPDM Or FKM)
  • Bearing: Sliding Bearing
  • Throughput: Ph 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 Psi)
  • Applications: Ceiling Booms, High Pressure Hose Reels, High Pressure Cleaners
Dimensions:
  • G1 (F): 3/8" NPTF
  • G2 (M): 3/8" NPTM
  • NW: 3/8"
  • H: 1.06
  • L1: 1.77
  • L2: 1.93
  • L3: 1.14
  • L4: 1.14
  • L5: 0.43
  • SW: 0.87
  • Weight: 9.2oz
