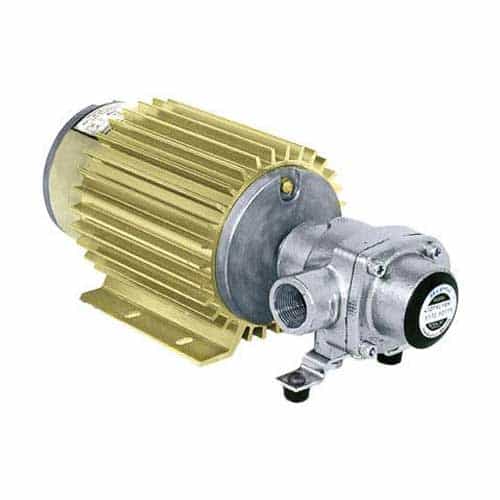

Hypro 4101XL-EH Four Roller Pump with 12 Volt DC Motor - 50 PSI, 1900 RPM, 7.5 GPM
Brand:
Mfr. Model #:
4101XL-EH
KR Part #:
HY4101XLEH
Weight:
17.20 lbs
GTIN:
734943004237
Silvercast iron spraying and transfer pump with four rollers and a cast iron rotor. Includes 12 volt motor.
Technical Specifications
Inlet Port: 3/4 inch
Max GPM: 7.5
Max PSI: 50
Max Temperature: 140 degrees F
RPM: 1900
Shaft Diameter: 1/2 inch
Voltage DC: 12
Product Description
Roller Pump and Motor Combination
The Hypro 4101XL-EH Roller Pump and Motor Assembly is designed for car wash, agricultural, and industrial spraying and fluid transfer. This includes soaps, detergents, emulsives, herbicides, insecticides, fertilizers, aromatic solvents, and many more. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.
- Maximum Flow: 7.5 GPM
- Maximum Pressure: 50 PSI
- Maximum Continuous Pressure: 50 PSI
- Maximum RPM: 1900 RPM
- Inlet: 3/4" FNPT
- Outlet: 3/4" FNPT
- Pump shaft rotation: Clockwise
- Housing: Silvercast iron
- Rotor: Silvercast iron
- Roller Quantity: 4
- Shaft Seals: Viton
- Shaft: 1/2" solid stainless steel
- Maximum Fluid Temperature: 140° Fahrenheit
- Mounting Bolts: 4 X 1/4-14 UNC
- Weight: 21 lbs.
