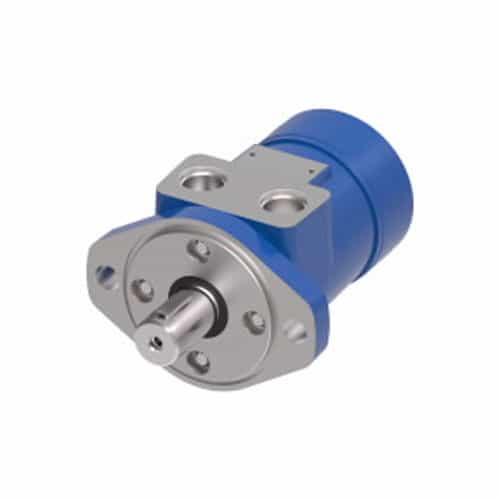

Char-Lynn 101-1703-009 H-Series Motor - 15 GPM, 385 RPM, 1700 PSI
Brand:
Mfr. Model #:
101-1703-009
KR Part #:
CL101-1703-009
Weight:
9.00 lbs
Usually Ships in 2 Weeks
The Char-Lynn 101-1703-009 H-series gerotor motor is designed with state of the art technology! Great for use when powering car wash brushes.
Technical Specifications
RPM: 385
Inlet Port: 7/8 inch
Max GPM: 15
Shaft Diameter: 1 inch
Max Temperature: 180 degrees F
Max PSI: 1700
Product Description
385 RPM Motor
It produces an optimized drive running angle using just three moving components- the gerotor star, drive, and shaft - to deliver high efficiency performance. Use the H series motor when powering car wash brushes, agricultural harvesters, food processing equipment, and more.Specifications:
- H-Series motor
- Medium duty performance
- Three moving parts: gerotor-star, drive, and shaft
- 4-bolt flange mount
- Maximum operating temperature: 180° F
- Maximum flow rate: 15 GPM continuous; 20 GPM intermittent
- Maximum pressure: 1700 PSI continuous; 2300 PSI intermittent
- Maximum speed: 385 RPM (continuous)
- Maximum torque: 1954 inch pounds continuous; 2653 inch pounds intermittent
- 7/8-14 UNF-2B motor port
- Straight Thread O-ring SAE 7/8-14 UNF-2B Ports Size 10 inlet and outlet
- 1" straight shaft
- Char-Lynn item #101-1703-009
Please note: intermittent operation refers to running the pump no more than 10% of each minute.
