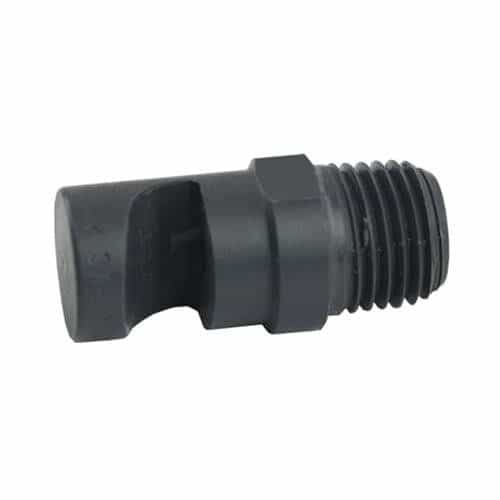

Spraying Systems 1/4K-PVC7.5 Plastic 1/4 in. FloodJet Wide Angle Spray Nozzle - 7.5 Capacity
Brand:
Mfr. Model #:
1/4K-PVC7.5
KR Part #:
SNFJ04K75PVC
Weight:
0.02 lbs
Availability:
6
Low Inventory Get It Today
7.5 capacity plastic FloodJet nozzle with deflector that provides a wide flat spray angle. This K style spray nozzle has a 1/4" male NPT inlet and .091" orifice. Maximum 60 PSI pressure.
Technical Specifications
Max PSI: 60
Capacity: 7.5
Inlet Port: 1/4 inch
Orifice: .091 inch
Product Description
1/4" Wide Angle Fan Spray Plastic Nozzle
The Spraying Systems 1/4K-PVC7.5 FloodJet Nozzle is a PVC plastic spray nozzle that provides an evenly distributed flat spray pattern. This plastic FloodJet has a 1/4" inlet and a 7.5 size capacity.
As liquid passes through the nozzle, it hits the deflector and spreads out to form a flat spray pattern. The distribution is even from the center of the spray. The deflector surface enables the formation of very wide spray angles compared to other flat spray nozzles.
Specifications:
- 7.5 capacity
- .091" equivalant orifice diameter
- K style nozzle
- 1/4" MNPT inlet connection
- PVC plastic construction
- 60 PSI maximum pressure
Flow Rates:
- .41 GPM @ 3 PSI
- .63 GPM @ 7 PSI
- .75 GPM @ 10 PSI (rated pressure)
- 1.1 GPM @ 20 PSI
- 1.3 GPM @ 30 PSI
- 1.5 GPM @ 40 PSI
- 1.8 GPM @ 60 PSI
Spray Angles:
- 101° @ 7 PSI
- 119° @ 20 PSI
- 134° @ 60 PSI
