Mosmatic 59.503 Stainless-Steel 90 Degree Swivel Rotary Union DYT - M21 1.5in. M x G 3/8in. M
Brand:
Mfr. Model #:
59.503
KR Part #:
SWM59503
Weight:
3.62 lbs

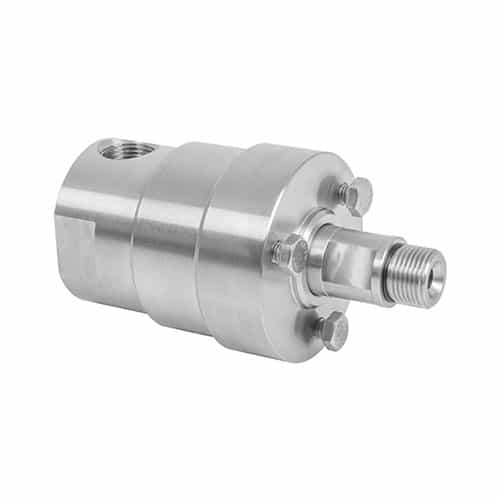

This is a 90-degree rotary union engineered for high pressures. Features a quadruple bearing system. Made with stainless-steel.
Technical Specifications
RPM: 2000
Max PSI: 5000
Max Temperature: 250 degrees F
Inlet Port: 1 1/2 inch
Outlet Port: 3/8 inch
Product Description
Stainless Steel Swivel
This rotary union is designed for high precision and quality in high pressure applications. Operates using a quadruple bearing system. Swivel is crafted using stainless-steel. Used in applications such as high pressure, thrust, radial force, self-rotation, and surface cleaners.
Specifications:
- Inlet Thread: M21X1.5 M
- Outlet Thread: G3/8 M
- NW: 6
- SW1: 16
- Length 1: 72
- Length 2: 109
- L3: 12
- L4: 3
- Length D1: 60
- D2: 28
- Max RPM: 2000
- Bar Pressure: 350 (5076.32 PSI)
- Temperature (°C): 120
Features:
- Quadruple bearing system
- Carbide seals
- Highest precision and quality
- Seal failure warning, through weep holes
- Sealed stainless steel bearings
Applications:
- High Pressure/Rpm
- Thrust
- Radial Force
- Self-Rotating
- Surface Cleaners
- Parts Washer
