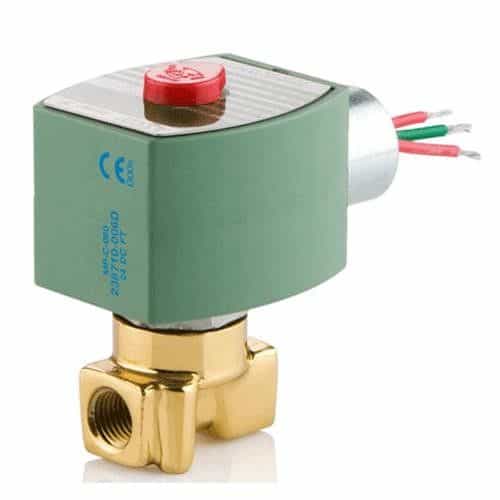

Asco 8262H142 24/60 2-Way Normally Open 24V Solenoid Valve - 1/4in.
Brand:
Mfr. Model #:
8262H142 24/60
KR Part #:
SA109
Weight:
2.00 lbs
Usually Ships in 2 Weeks
A 2-way normally open solenoid valve with a brass construction. Used for water, air, inert gases and light oil in car washes. Compatible with 24VAC electrical connections.
Product Description
RedHat General Service Solenoid Series 8262
This direct acting brass solenoid features a 2-way normally closed configuration. Constructed to handle a maximum pressure of 100 PSI for all mediums, with a minimum operating pressure differential of 0 PSI. Made with stainless steel core, core tube, springs and plug nut and NBR seals.
Specifications:
- Valve Configuration: 2-Way, Normally Open
- Media: Air, Inert Gases, Light Oil, Water
- Ports: 1/4" FNPT
- Min. Operating Pressure Differential: 0 PSI
- Max. Operating Pressure Differential: 100 PSI
- Environmental Rating: Indoor, Outdoor
- Voltage: 24VAC
- Flow Factor: 0.47 Cv
- Body Material: Brass
- Coil Insulation Class: F
- Seal Material: NBR
- Orifice Dia.: 4mm
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- IP Rating: 66
- Fluid Temp. Range: -13°F - 180°F
- Watts: 10.1 W
- Coil Enclosure: NEMA
- Approvals: CE, CSA, FM, UL
