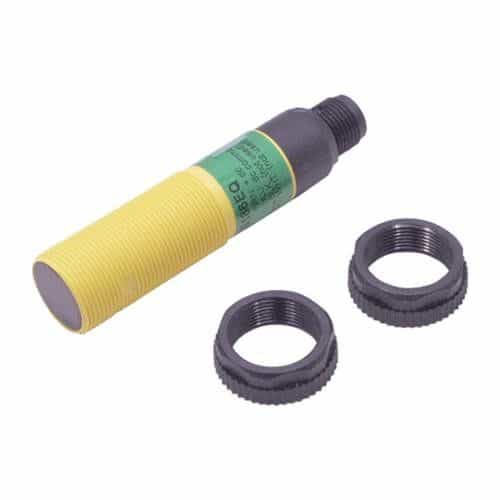

Thermoplastic Housed Photoelectric Sensor

Banner's S186EQ emitter is made with a thermoplastic housing. Features a 66 ft sensing range. Engineered to meet NEMA IP67, IP69 ratings making this sensor an excellent choice for wash-down environments. Input for power. Compatible with 10 to 30 V DC. EZ-BEAM¨ technology provides reliable sensing without the need for adjustment. Features a 4-pin M12 Euro Style Mount with an integral QD system.

Specifications:

• Sensing Beam: Infrared LED
• Power: DC
• Sensing Mode (General): Opposed
• Sensing Mode (Detailed): Emitter
• Housing Style: Barrel
• Primary Housing Material: Thermoplastic
• Max Sensing Distance (mm): 20000
• Outputs: N/A
• Power Supply/Supply Voltage: 10-30 V dc
• Connection: Integral QD
• Quick Disconnect Type: M12 (Euro)
• Min Op. Temp. (°C):  -40
• Operation: N/A
• Max Op. Temp. (°C): 70
• Output response time (ms): N/A
• Special Feature: Intrinsically Safe: No
• Special Feature: Remote Teach: No
• Special Feature: Water Detection: No
• Delay at Power-up (ms): 100
• Repeatability (µs): 375
• Number of Pins: 4
• IP Rating: IP67, IP69
• NEMA Rating: NEMA 6P
• Max Op. Relative Humidity [%]: 90% @ 50°C
• Lens Material: Polycarbonate
• Adjustments: N/A
• Barrel Diameter (mm): 18
• Indicator: LEDs
• Opposed Mode Emitter/Receiver: Emitter
• Washdown Rated: Yes
• Timing (Hold/Delay): No
• Ecolab Certified: Yes
• Encapsulated: No
• Hazardous Area: No
• Audible: No
• Chemical Resistant: No
• Device Net: No
• IO Link: No

Features:

• EZ-BEAM S18 Series: Emitter
• Range: 20 m; Input: 10-30 V dc
• Output: Not applicable - No outputs
• Euro M12 4-pin Integral QD
• Part Number: 29507

Applications:

• Exit Verification (In-Bay Automatic/Rollover): Verifies that vehicle has exited car wash. Signals dryers to turn off. Prompts entry doors to open and admit next vehicle.
• Teller/Coin Box and Menu Selection (In-Bay Automatic/Rollover): "Wakes up" teller. Doors open when correct code is entered, and previous vehicle has exited bay. Verifies that vehicle has departed coin box area.
• Undercarriage Wash Trigger (In-Bay Automatic/Rollover and Conveyorized Tunnel): Detects presence of a vehicle while it is in the undercarriage wash zone. Signals the pumps to start/stop undercarriage wash.
• Anti-Collision (Conveyorized Tunnel): Verifies that prior vehicle has exited car wash. Allows conveyor to "eject" car from system to exit the wash.
