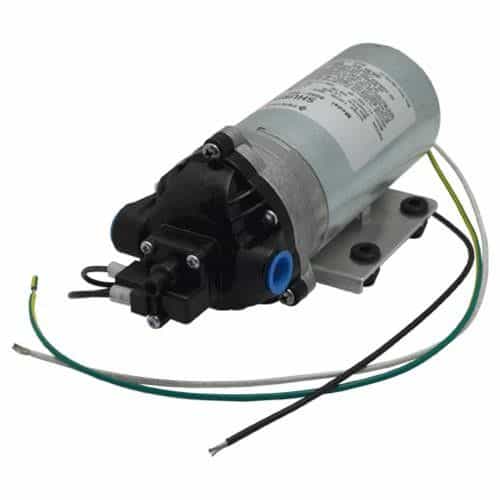

ShurFlo 8030-863-239 Diaphragm Pump, 1.5GPM, 115V, 150PSI
Brand:
Mfr. Model #:
8030-863-239
KR Part #:
SF8030863239
Weight:
4.88 lbs
GTIN:
734943369206
Shurflo 8000 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure use. Excellent for spraying and transfer applications in the car wash and agricultural industries. Chemically resistant material, versatile mounting positions.
Technical Specifications
Max GPM: 1.5
Max PSI: 150
Voltage AC: 115
Max Temperature: 140 degrees F
Amps: 1.2
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Product Description
ShurFlo 8000 Series Diaphragm Pump
Reliable, medium flow performance at moderate pressures makes the Shurflo 2030-863-299 an excellent choice for a variety of spraying and fluid transfer applications. Self-priming to 8 feet, they can be mounted in various positions, making them versatile and flexible. Demand switch helps to prevent fluid backflow during operation.
Features:
- 16 AWG wires w/SW
- Zinc-finished motor
- Nylon housing
- Viton valves
-
Solid santoprene diaphragm
-
Designed for easy maintenance.
- NSF, UL and CSA listed
- Can run dry without damage
Specifications
- Amps: 1.2
- Voltage AC: 115
- Max Flow: 1.5 GPM
- Maximum Pressure: 150 PSI
- Inlet/Outlet Ports: 3/8"NPT
