Procon 105B330R31XX Series 5 Clamp-On Rotary Vane Pump - 330 GPH
Brand:
Mfr. Model #:
105B330R31XX
KR Part #:
PPCB2639VA
Weight:
5.00 lbs
Out of stock - Pre-Order Now!
Stainless steel body rotary vane pump with a positive displacement design. This pump has clamp-on mounting, fluorocarbon seals, 1/2" ports, and a 330 GPH flow rate.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 5.5
Max PSI: 250
RPM: 1725
Product Description

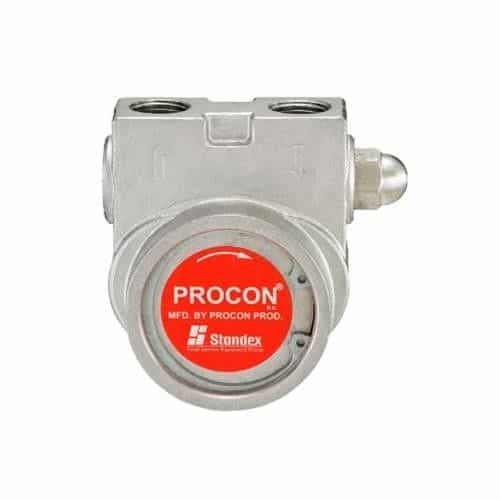

Stainless Steel Clamp-On Pump
The Procon 105B330R31XX Pump is a stainless steel rotary vane pump from the Procon 5 Series. This positive displacement model pump is designed to operate virtually maintenance-free. It has 1/2" NPT inlet and discharge ports and a maximum flow rate of 330 GPH.
This Series 5 rotary vane pump has low-vibration operation and self-priming capabilities. It is ideal for R.O., water transfer, and boosting applications. Features clamp-on style mounting.
Dimensions: 4.1" x 3.88" x 4.48"
Specifications:
- Rotary vane style pump
- Non-food grade - 1.5% maximum lead
- Clamp-on mounting with 1143 bronze coupling
- Fluorocarbon type 21 seals
- 240 GPH
- 250 PSI maximum pressure - no relief valve setting
- 303 stainless steel construction
- 1725 RPM nominal speed
- Clockwise rotation with slinger
- Standard clearances
- 1/2" NPT inlet and outlet
- Weight: 5 lbs.
Features:
- Self-priming
- Maintenance-free
- Low vibration and pulsation
Typical Applications:
- Water circulation
- Reverse osmosis
- Booster pumps
- Solar applications
- Hydraulic systems
- Desalination
