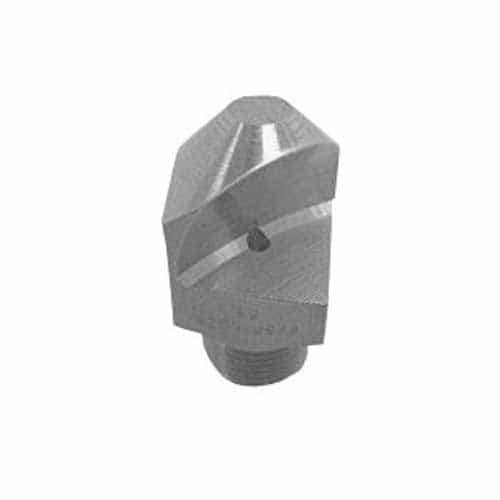

Spraying Systems 1/4P-SS5005 Stainless Steel 50 Degree Deflector FlatJet Nozzle - 1/4 in. Male NPT
Brand:
Mfr. Model #:
1/4P-SS5005
KR Part #:
SNFJ045005SS
Weight:
0.10 lbs
Usually Ships in 2 Weeks
Stainless steel construction deflector spray nozzle that provides a flat 50° spray.
Technical Specifications
Inlet Port: 1/4 inch
Max PSI: 150
Product Description
5 Capacity Deflection Spray Nozzle - 50°
The Spraying Systems 1/4P-SS5005 FlatJet spray nozzle is designed to deliver a high-impact flat spray. Because the spray hits a deflector, water is evenly distributed from the center, retaining high impact at a narrow angle. Plus, its large flow passage helps avoid any obstructions!
Use this flat spray nozzle in presoaks, rinse arches, or any other application where adjacent spray patterns do not overlap.
Specifications:
- Inlet: 1/4" MNPT
- Spray Angle: 50°
- Spray Pattern Type: Even
- Capacity @ 40 PSI: .5
- Nozzle Type: P
- Capacity Size: 5
- Material: Stainless Steel
- Length: 1 7/32"
- Orifice: .052"
- Deflection Angle: 60°
- Hex Square: .625"
- Minimum Pressure: 15 PSI
- Maximum Pressure: 150 PSI
