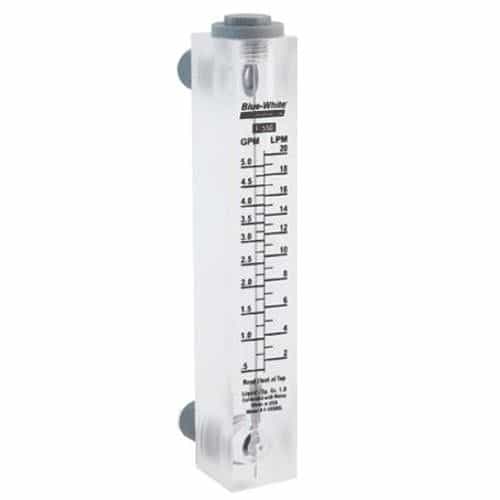

Blue-White F-55500L Acrylic Single Piece Flow Meter - 1/2 Inch, .5 to 5 GPM
Brand:
Mfr. Model #:
F-55500L
KR Part #:
BWF55500L
Weight:
8.88 lbs
Availability:
1
Machined acrylic meter with a direct reading scale. Features 1/2" MNPT inlet and has a flow range from .5 to 5 GPM.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 5
Max PSI: 250
Max Temperature: 200 degrees F
Product Description
Acrylic Material Flow Meter
The Blue-White F-55500L Flow Meter is a one-piece acrylic instrument that measures the flow rate of water in a pressured system. This panel-mounted flow meter has 1/2" male NPT inlet and outlet connections and a flow range from .5 to 5 GPM. This instrument has only been tested with water and cannot be guaranteed to work with other fluids.
Specifications:
- .50-5 GPM
- 1/2" MNPT pipe size
- 250 PSI maximum pressure
- 200° maximum temperature
- Clear acrylic meter body
- 316 stainless steel floats
- Viton o-rings
- Polypropylene lock nut
- Permanent silkscreen scale
- +/- 5% full scale accuracy
Features:
- Acrylic is durable and highly polished
- Annealed for added strength and chemical resistance
- Suitable for outdoor applications in direct sunlight
- Bulkhead nuts attach to inside panel
- White back reflector for easier reading
Applications:
- R.O. & D.I. water systems
- Pollution treatment equipment
- Purging and regulating equipment
- Water and wastewater treatment equipment
- Film and x-ray processing
- Chemigation equipment
