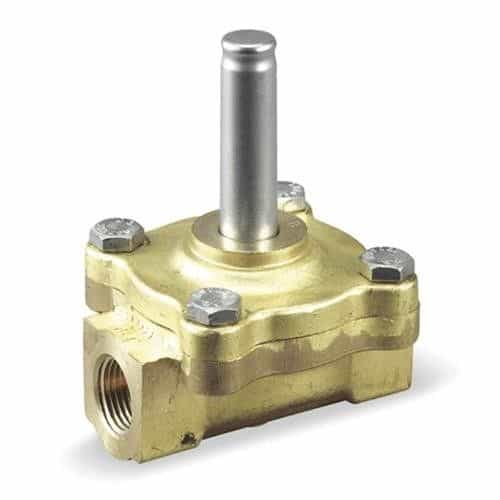

Dayton 1A577 Brass Normally Closed 2-Way Solenoid Valve - 1/2 Inch, 300 PSI
Brand:
Mfr. Model #:
1A577
KR Part #:
SD1A577
Weight:
1.49 lbs
Availability:
1
Low Inventory Get It Today
A brass solenoid valve with a piloted operation. Used with air, steam and water applications. Tolerates a maximum flow rate of 43.8 GPM.
Technical Specifications
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max GPM: 43.8
Min GPM: 5/8 inch
Orifice: 5/8 inch
Max Temperature: 180 degrees F
Product Description
1/2 Inch Solenoid Valve
Dayton's 1A577 is a solenoid valve with a normally closed configuration. This valve is a pilot operated valve and made with a brass body and Buna-N seals. Handles a range of flow rates from 8.0 to 43.8 GPM. Compatible with applications involving air, steam and water.
Specifications:
- Solenoid Valve Product Group: Solenoid Valve Less Coil
- Valve Ways and Positions: 2-Way
- Valve Configuration: Normally Closed
- Media - Valves: Air, Steam, Water
- Pipe Size - Valves: 1/2 in
- Min. Operating Pressure Differential: 5 psi
- Max. Operating Pressure Differential Air/Inert Gas: 150 psi
- Max. Operating Pressure Differential Light Oil: 150 psi
- Max. Operating Pressure Differential Water: 150 psi
- Environmental Rating - Valves: Indoor, Outdoor
- Coefficient of Volume: 3.6
- Body Material - Valves: Brass
- Seal Material - Valves: Buna-N
- Orifice Dia.: 5/8 in
- Safe Working Water Pressure: 300 psi
- Operation Type: Pilot Operated
- Flow Range: 8.0 to 43.8 gpm
- Airflow: 79.2 to 292 scfm
- Max. Fluid Temp.: 180 Degrees F
- Overall Length: 2 3/4 in
- Overall Height: 3 1/2 in
- For Use With: Dayton Solenoid Coils
