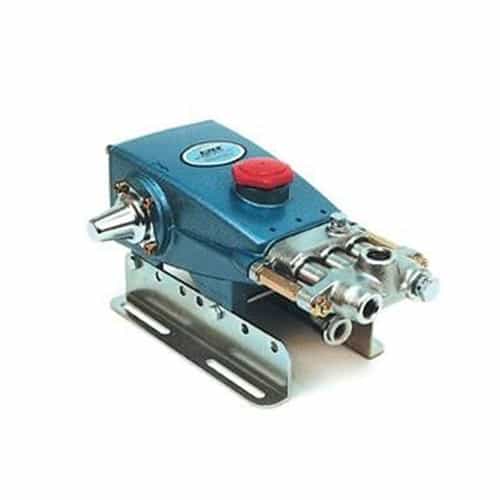

CAT Pumps 623.0301 Pump with Blue Dot Seals and Flat Valves, - 6 GPM, 1200 PSI

Brand:
Mfr. Model #:
623.0301
KR Part #:
PU00623.0301
Weight:
31.00 lbs
Usually Ships in 2 Weeks
MSRP
$3,250.99
Now Only!
$1,727.10

The CAT 623 pump is one of the most popular pumps for self-service bays! This brass piston pump has blue dot seals for optimum performance around soaps, chemicals, and high temperatures, as well as flat valves. Up to 6 GPM, at pressures up to 1200 PSI. Brackets are not included with this pump.

NOTE: This pump does NOT come with oil




Technical Specifications

RPM: 850
Max Temperature: 160 degrees F
Stroke: 28.5 millimeter
Shaft Diameter: 25 millimeter
Max PSI: 1200
Max GPM: 6
Inlet Port: 1 inch
Crankcase Capacity: 40 ounce
Bore: 20 millimeter

Product Description

Piston Pump with Flat Valves

The Cat Pumps 623.0301 10 frame piston pump is perfect for use in car wash bays! This brass piston pump has blue dot seals for optimum performance around soaps, chemicals, and high temperatures. The wick and seal combination provides service in applications where hot water and detergents may prematurely flush the grease from the seals.

The pump's triplex design provides continuous liquid flow for smooth operation. The wetted seals and floating pistons let pumped liquids cool and lubricate for long life. In addition, the oil bath crankcase assures optimum lubrication.

Click here to shop the standard CAT Pump 623 model.

Dimensions: 17.28" x 11.42" 6.30"

CAT 623 Features:

  • 6 GPM
  • 100 - 1200 PSI
  • 850 RPM
  • 1.22" stroke
  • 0.787" bore
  • Inlet pressure: -8.5 to 40 PSI
  • Max liquid temp: 160° F
  • Crankcase capacity: 40 oz.
  • Inlet port: 1" NPTF
  • 3 discharge ports: 3/4" NPTF each
  • Shaft diameter: 0.984"
  • Please note that this pump does NOT come with oil - find authentic CAT Pumps Oil here.

CAT 623 Accessories:
