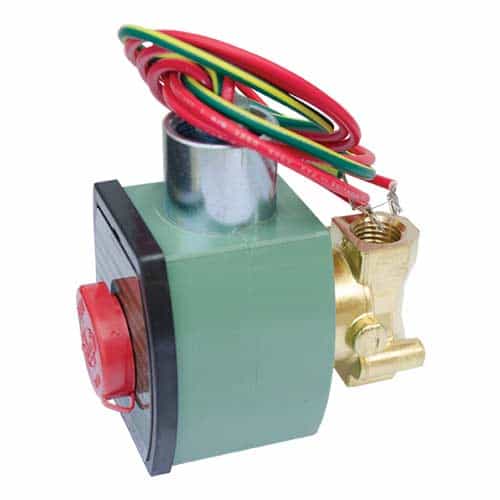

Asco 8262H262 120/60 Brass Normally Open 2-Way Solenoid Valve - 1/4 Inch, 160 PSI, 120/60 110/50 VAC
Brand:
Mfr. Model #:
8262H262 120/60
KR Part #:
SA107
Weight:
2.00 lbs
Usually Ships in 2 Weeks
Normally open solenoid valve engineered for use with hot water. Compatible with 1/4 - inch piping. Coil accepts 120/60 110/50 VAC.
Technical Specifications
Max PSI: 160
Outlet Port: 1/4 inch
Inlet Port: 1/4 inch
Max Temperature: 180 degrees F
Product Description
General Service Solenoid Valve
Asco's 8262H262 120/60 Solenoid Valve is safe to use with gas, water, air. Valve inlet and outlet fit 1/4 - inch piping with a body that is constructed with brass. This valve tolerates fluid temperatures up to 180 degrees Fahrenheit. Designed with a 2-way function and a normally open design.
Specifications:
- Pipe Size: 1/4"
- Type: 2 Way
- Mode: Normally Open
- Body Material: Brass
- Media: Gas, Water, Air
- Voltage: 120/60 110/50 AC
- Orifice Diameter: 1/8 In
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- Max. Media Temp.: 180 Degrees F
- Max. Operating Pressure: 160 PSI
- Coil Enclosure: F
