Fluid-O-Tech PA4060 1" Flange Style Pump 520PH
Brand:
Mfr. Model #:
PA4060
KR Part #:
FTPA4060
Weight:
3.00 lbs
Usually Ships in 2 Weeks
Stainless steel rotary vane pump with 1" female NPT ports. Bolt-on, available with NBR or Viton seals.
Technical Specifications
Inlet Port: 1 inch
Max GPM: 520
Max PSI: 290
Max Temperature: 158 degrees F
RPM: 1725
Product Description

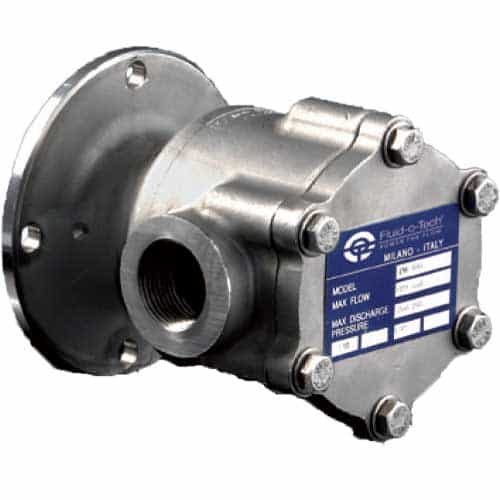

High Volume Bolt-On Stainless Steel Body Rotary Vane Pump
The largest Rotoflow¨ high technology volumetric pumps available, Fluid-O-Tech PA4060 pump is a bolt-on rotary vane pump. Featuring AISI 303 stainless steel construction for the housing, rotor, and metallic components, the pumping chamber and vanes are carbon graphite for self-lubrication and consistent operation. This volumetric pump transfers water and moderates aggressive liquids at a low flow with high pressure.
Specifications:
- Pump Housing Material:Stainless Steel
- Rotor Material: Stainless Steel
- Pumping Chamber Material: Carbon graphite
- Flow Rate: 520 GPH
- Inlet/Discharge Ports: 1" NPT-F
- Maximum Speed: 1725 RPM
- Maximum Static Pressure: 290 PSI
- Maximum Operating Temperature: 158° F
- Pump Weight: 11.6 lbs
Applications:
- Water Treatment
- Liquid Dispensing
- Cooling Systems
- Beverage Vending Machines
