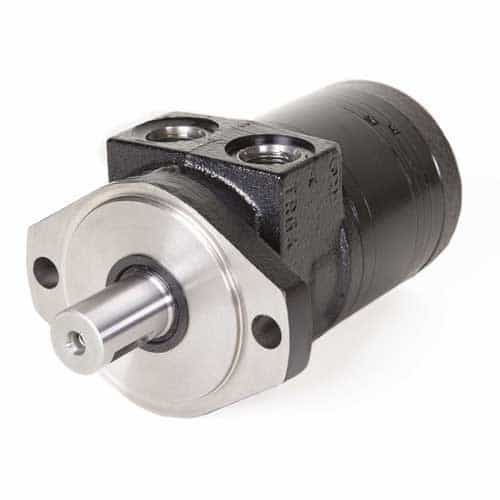

6.5 Horsepower Light Duty Hydraulic Motor

The Parker TC0065FS100AAAC hydraulic motor is part of the TC Series. High-volume fluid flow continually washes across the splines and seals to extend their life. Roller vanes and sealed commutation assure high volumetric efficiency and smooth low-speed operation.

This lighter duty motor is an excellent option for automatic car washes and other harsh environments where motors are frequently exposed to water. Ideal for conveyors, winches, gear boxes, and boom rotators.

Specifications:

• 1250 PSI continuous duty maximum pressure
• 1750 PSI intermittent duty maximum pressure
• 1950 PSI maximum supply pressure
• 517 RPM maximum speed
• 582 pounds-inch maximum torque (continuous duty)
• 810 pounds-inch maximum torque (intermittent duty)
• 361 pounds-inch minimum starting torque (continuous duty)
• 590 pounds-inch minimum starting torque (intermittent duty)
• 65 cubic centimeter displacement
• 9 GPM maximum oil flow (continuous or intermittent duty)
• 4 bolt with 3/8-16 thread
• 7/8-14 SAE ports
• 1" keyed shaft
• Standard rotation
• Double painted

Features:

• TC Series

• Robust construction for longer life

• High pressure shaft seal comes standard

• Superior side load capacity (Up to 790 lb. at the key)

• Continuous oil flow across internal splines for longer life

• DU and sintered copper/steel bushings

• Smooth, extra low speed operation

• Innovative design eliminates the need for a case drain

• Designed and manufactured in Greeneville, TN USA

Markets:

• Car Wash
• Aerial
• Agricultural Machinery
• Construction Equipment
• Factory Automation
• Material Handling Equipment
• Oil & Gas
• Food & Beverage

Machine and Device Applications:

• Conveyers
• Food Processing
• Winches
• Augers
• Post Hole Augers
• Snow Removal
• Salt and Sand Spreaders
• Boom Rotate
• Oil and Gas Blender Trucks
