1XP075.03DC Cat Extractor Pump .75GPM .3HP 500PSI
Brand:
Mfr. Model #:
1XP075.03DC
KR Part #:
PU1XP075.03DC
Weight:
15.20 lbs
Out of stock - Pre-Order Now!
Cat Pump 1XP series is a great fit for misting, hydrostatic testing, truck mount extractors and many other applications.
NOTE: This pump does NOT come with oil
Technical Specifications
Horsepower: 1/3
Inlet Port: 3/8 inch
Max GPM: .75
Max PSI: 500
Product Description

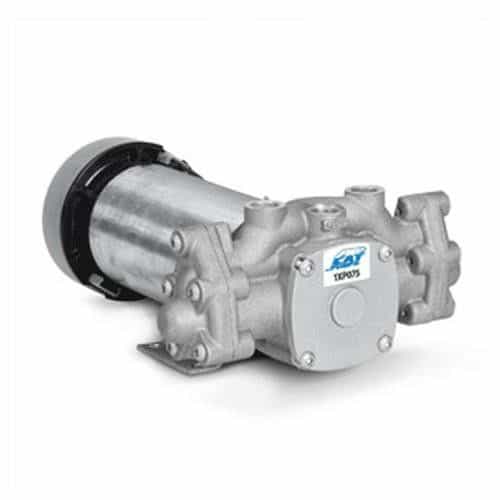

CAT Pumps 1XP075.03DC
This is a compact, direct drive (1750 RPM) motorized pump unit used in portable extractors, electric truck mounts, misting, hydrostatic testing, and wash down applications. It is constructed of a plated aluminum crankcase body, 304 stainless steel valve assemblies, solid ceramic plungers, special blend fluorocarbon seals and o-rings. Pump features a patented greaseless design, 100% sealed wet end and keyed shaft so pump can operate clock-wise or counterclockwise rotation. Equipped with a DC permanent magnet, ODP motor.
Features:
- Perfect fit for extractor foot print
- The most reliable extractor pump available
- Provides consistent reliability
- Please note that this pump does NOT come with oil - find authentic CAT Pumps Oil here.
Technical Specifications:
- Max Flow: 0.75 gpm
- Max Pressure: 500
- Inlet Port Size: 3/8" NPT(F)
- Discharge Port Size: 3/8" NPT(F)
- RPM: 1750
- Drive Type(s): Direct
- Material: Aluminum
