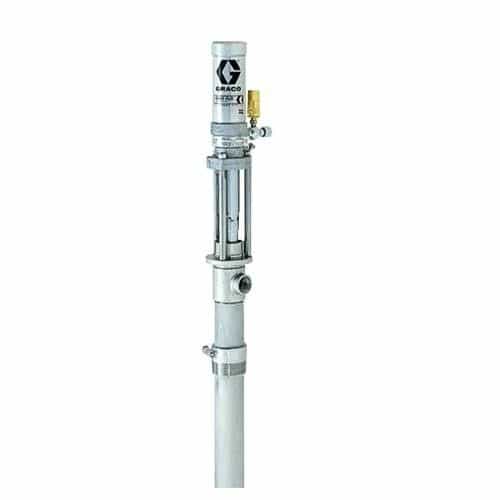

Graco 226942 Fast-Flo Air Operated Piston Transfer Stainless Steel Drum Pump with PE Packing
Brand:
Mfr. Model #:
226942
KR Part #:
GDP226942
Weight:
20.00 lbs
Usually Ships in 2 Weeks
This Graco 55-gallon drum pump is used to easily transfer low viscosity fluids at volumes up to 4 GPM. This Graco Fast-Flo pump is made of stainless steel and is powered with air to smoothly and reliably move liquids. Achieves a maximum pressure of 180 PSI, has a 1:1 ratio, and includes polyethylene (PE) packing.
Technical Specifications
Max PSI: 180
Max GPM: 4
Product Description
Graco Drum Pump
The Graco 226942 Drum Pump is mounted on the bung of a 55-gallon drum and easily transfers low viscosity liquids. It’s made of stainless steel and is packed with polyethylene. This Graco drum transfer pump is powered with air, providing smooth, reliable movement of liquid at a low cost of operation. Part of the Fast-Flo 1:1 line of piston pumps, these pumps are designed to operate at air input pressure levels up to 180 PSI.
Graco 226942 Specifications
- Maximum Pressure: 180 PSI
- Maximum Flow Rate: 4 GPM
- Air Inlet Size: 1/4" NPT female
- Fluid Outlet Size: 3/4" NPT female
- Body Material: Stainless Steel
- Packing Material: PE (polyethylene)
- Compatible Drum Height: 34.6"
- Ratio: 1:1
- Bung mounted
Common Fluids Used with a Graco Pneumatic Drum Pump
- Motor oil
- Hydraulic fluid
- Windshield wiper fluid
- Antifreeze
- Oil (including used oil)
