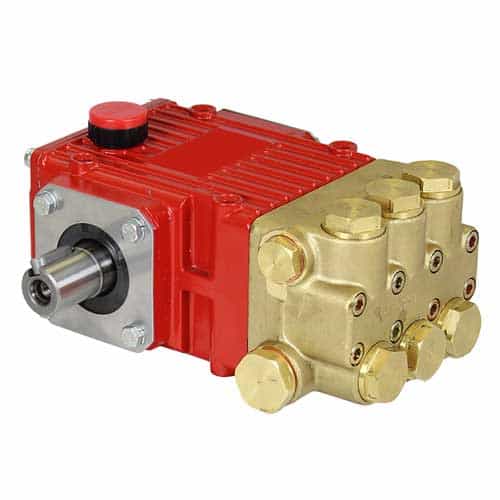

Giant Pumps 318LX Triplex Plunger Pump - Left Shaft
Brand:
Mfr. Model #:
318LX
KR Part #:
PUP318LX
Weight:
16.00 lbs
Temporarily Unavailable
Technical Specifications
Max Temperature: 160 degrees F
RPM: 1450
Max PSI: 2000
Max GPM: 4.8
Horsepower: 6.6
Inlet Port: 1/2 inch
Stroke: .56 inch
Product Description
Triplex Ceramic Plunger Pump
This Giant Pumps P318 model triplex plunger pump features an aluminum crankcase with sight glass and vented dipstick. It has a forged, ground, and polished crankshaft and bronze connecting rods. Other features include: solid ceramic plungers, stainless steel valves, and nitrile seals. Find the pump breakdown, operating instructions, and more under the Manuals tab.
- Maximum inlet pressure: 145 PSI
- Maximum temperature: 160 degrees F
- Plunger diameter: 0.79"
- Stroke: 0.56"
- Crankshaft Diameter: 24 mm
- Shaft rotation: top of pulley towards manifold
- Shaft mounting: either side
