Pump, SHURflo 115V 1.5GPM

Brand:
Mfr. Model #:
8005-733-155
KR Part #:
SF8005733155
Weight:
4.50 lbs
Usually Ships in 2 Weeks
MSRP
$209.82
Now Only!
$139.88

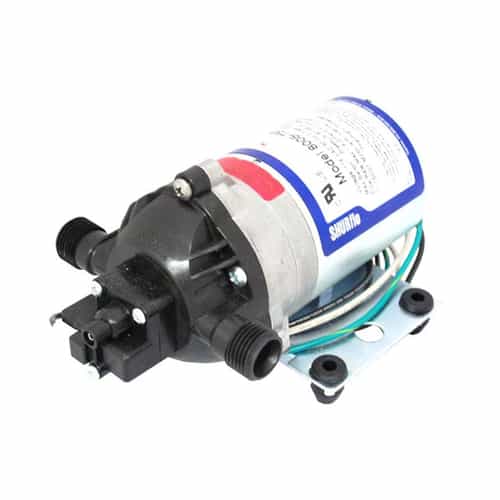

The SHURflo 8005-733-155 is a diaphragm pump that operates using 115AC volt electrical power. The diaphragm is made of Santoprene and it has a built-in check valve. Compact size, self-priming to 8', and mountable in any position. The 8005-733-155 pump has a max flow rate of 1.5 GPM and produces a max pressure level of 60 PSI.




Technical Specifications

Max GPM: 1.5
Max PSI: 60
Voltage AC: 115
Max Temperature: 170 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch

Product Description

8005-733-155 Diaphragm Pump

The SHURflo 8005-733-155 is from the 8000 Series of pumps widely used for car wash, agriculture, and industrial applications. This electric pump has a Santoprene diaphragm, built-in check valve, and a demand switch. It has a maximum flow rate of 1.5 GPM and a maximum pressure of 60 PSI. This compact pump can be mounted in any position and is designed for long trouble-free life.

Specifications and Features

  • Flow Rate: 1.5 GPM
  • Voltage: 115VAC
  • Amps: 0.31-0.54 Amps @ 0-60 PSI
  • Maximum Pressure: 60 PSI
  • 45 PSI internal bypass
  • Maximum Liquid Temperature: 170° Fahrenheit
  • Inlet Connection: 1/2" male NPT
  • Outlet Connection: 1/2" male NPT
  • 8000 Series
  • Santoprene diaphragm
  • Demand Switch
  • Can run dry without damage
  • Self priming up 8 vertical feet
  • Built-in check valve
  • UL Recognized
  • NSF and CSA listed
