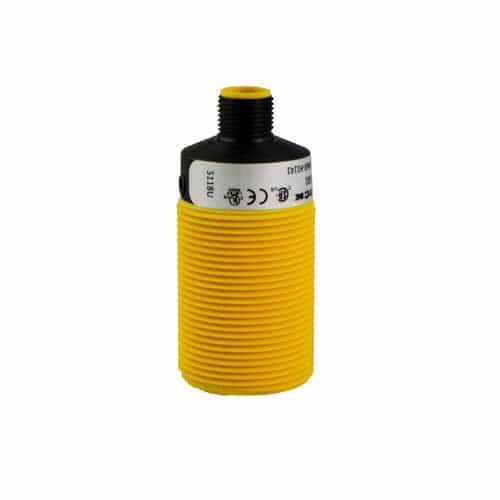

M30 x 1.5 Inductive Sensor

Turck's BI10-S30-AN6X-H1141 inductive sensor is used as a contactless and wear-free way to detect metal objects at car washes. Sensing distance reaches a maximum of 10-millimeters. Constructed with a PA12-GF30 plastic housing. Compatible with 10-30 VDC voltage power connections.

Specifications:

• Ident. no. 46581

• Rated switching distance 10 mm

• Mounting conditions Flush

• Secured operating distance _ (0.81 _ Sn) mm

• Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms= 0.4

• Repeat accuracy _ 2 % of full scale

• Temperature drift _ ± 10 %

• Hysteresis 3É15 %

• Ambient temperature -25É+70 °C

• Operating voltage 10É30 VDC

• Residual ripple _ 10 % Uss

• DC rated operational current _ 200 mA

• No-load current _ 15 mA

• Residual current _ 0.1 mA

• Isolation test voltage _ 0.5 kV

• Short-circuit protection yes / Cyclic

• Voltage drop at Ie _ 1.8 V

• Wire breakage/Reverse polarity protection yes / Complete

• Output function 3-wire, NO contact, NPN

• Switching frequency 0.5 kHz

• Design Threaded barrel, M30 _ 1.5

• Dimensions 63 mm

• Housing material Plastic, PA12-GF30

• Active area material Plastic, PA12-GF30

• Max. tightening torque of housing nut 5 Nm

• Electrical connection Connector, M12 _ 1

• Vibration resistance 55 Hz (1 mm)

• Shock resistance 30 g (11 ms)

• Protection class IP67

• MTTF 2283 years acc. to SN 29500 (Ed. 99) 40 Degrees C

• Switching state LED, Yellow
