Corrosion Resistant Inductive Sensor

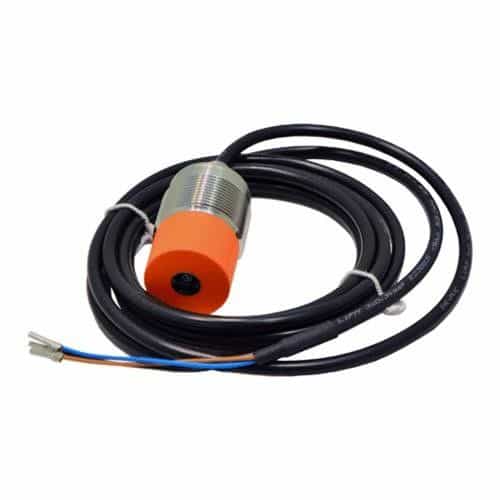

The IFM Efector II7107 is a sensor for car washes that is designed to meet IP67 protection standards and endure harsh industrial environments. Features a maximum sensing distance of 15mm and M30 x 1.5 threading. The housing is constructed with brass coated with white bronze for durability and superior corrosion resistance. A yellow LED indicates its switching status.

Specifications:

• Electrical Design: NPN
• Output Function: Normally Open
• Sensing Range [mm]: 15
• Housing    Threaded: Type
• Dimensions [mm]: M30 x 1.5 / L = 60

Electrical Data:

• Operating Voltage [V]: 10...30 DC
• Current Consumption [mA]: < 10
• Protection Class: III
• Reverse Polarity Protection: Yes

Outputs:

• Electrical Design: NPN
• Output Function: Normally Open
• Max. Voltage Drop Switching Output DC [V]: 2.5
• Permanent Current Rating of Switching Output DC [mA]: 100
• Switching Frequency DC [Hz]: 200
• Short-Circuit Protection: Yes
• Overload Protection: Yes

Monitoring Range:

• Sensing range [mm]: 15
• Real Sensing Range Sr [mm]: 15 ± 10 %
• Operating Distance [mm]: 0...12.1

Accuracy / Deviations:

• Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch-Point Drift [% of Sr]: -10...10

Operating Conditions:

• Ambient temperature [°C]: -25...75
• Protection: IP 67
• Tests / Approvals: EMC
• EN 61000-4-2 ESD - 4 kV CD / 8 kV AD
• EN 61000-4-3 HF radiated - 10 V/m
• EN 61000-4-4 Burst - 2 kV
• EN 61000-4-6 HF conducted - 10 V
• EN 55011 - class B
• MTTF [years] - 1675
• Embedded Software Included: Yes
• UL approval
• Ta - -25...75 °C
• Enclosure Type - Type 1
• Voltage Supply - Limited Voltage/Current
• UL Approval Number - A002
• File Number - UL
• E174191

Mechanical Data:

• Housing: Threaded Type
• Mounting: Non-Flush Mountable
• Dimensions [mm]: M30 x 1.5 / L = 60
• Thread Designation: M30 x 1.5

Materials:

• Housing: Brass White Bronze Coated
• Sensing Face: PBT Orange
• LED Window: PEI
• Lock Nuts: Brass White Bronze Coated
• Tightening Torque [Nm]:    50
• Displays / Operating Elements

Display:

• Switching Status: 1 x LED, yellow

Accessories:

• Items Supplied: Lock Nuts - 2x
• Remarks

Electrical Connection:

• Connection: Cable: 2 m, PUR, Ø 4.0 mm; 3 x 0.34 mm²
• Weight: 0.60 lbs.
• GTIN: 4021179254632
