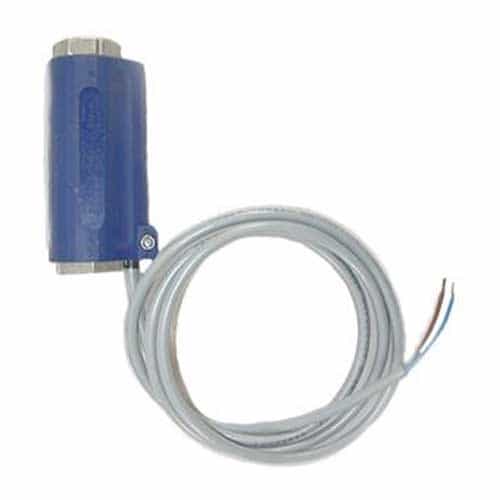

Suttner 200505706 Stainless Steel Flow Switch - 8700 PSI, 7.8 GPM, 3/8 Inch FPT
Brand:
Mfr. Model #:
200505706
KR Part #:
SUT200505500
Weight:
0.90 lbs
Usually Ships in 2 Weeks
A flow switch for vacuum systems. Mounts vertically downstream from pumping systems. Handles a maximum flow rate of 7.8 GPM and a PSI of 8700.
Note: Includes 47" wire.
Technical Specifications
Max PSI: 8700
Max GPM: 7.8
Max Temperature: 180 degrees F
Min PSI: 75
Min GPM: 1.0
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Product Description
Vacuum Flow Switch
Suttner 200505706 is a vacuum flow switch made with stainless-steel. Mount further downstream in pumping systems to reduce potential leak points that cause switches to close. Mounts vertically and is designed with 3/8-inch FPT ports. Utilizes a free-floating brass magnet configuration.
Specifications:
- Max. PSI: 8700
- Min. PSI: 75
- Max. Temperature: 180° F
- Max. Flow Rate: 7.8 GPM
- Min. Flow Rate: 1.0 GPM
- Inlet: 3/8" FPT
- Outlet: 3/8" FPT
