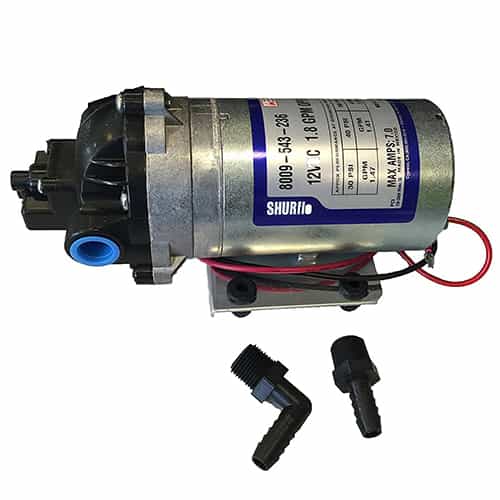

ShurFlo 8009-543-236 Standard Demand Pump with Internal Bypass - 12VDC, 1.8 GPM

Brand:
Mfr. Model #:
8009-543-236
KR Part #:
SF8009543236
Weight:
5.80 lbs
GTIN:
752324000258
Usually Ships in 2 Weeks
MSRP
$184.94
Now Only!
$123.29

Shurflo 8000 series pumps are designed for heavy-duty spraying and fluid transfer applications. The pump can be mounted in any position, is compact, and is designed for long trouble-free life. 12 volt DC, 1.8 GPM, 60 PSI.




Technical Specifications

Max GPM: 1.8
Max PSI: 60
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Voltage DC: 12

Product Description

Shurflo 12V Water Pump 8000 Series

Model 8009-543-236 is a Shurflo 12V DC water pump from the 8000 Series of diaphragm pumps. Pumps from this series are widely used in the agriculture industry. Plus, they are great for the car wash industry. Viton valves assure maximum chemical resistance. A unique conical valve design provides a high flow rate at the maximum discharge pressure, making this Shurflo 12v water pump from the 8000 series a perfect choice for sprayers used on the farm or around the yard. These Shurflo 12v water pumps deliver a flow rate up to 1.8 GPM providing maximum performance in a wide range of applications.

Features:

  • Self-priming up to 8 vertical feet
  • Made with chemical-resistant materials
  • Can run dry without damage
  • Built-in check valve
  • Includes demand switch

Specifications:

  • Manufacturer: Shurflo
  • Model Number: 8009-543-236
  • Diaphragm Material: Santoprene
  • Flow Rate: 1.8 GPM
  • Voltage: 12 VDC
  • Maximum Pressure: 60 PSI
  • Internal Bypass: 45 PSI
  • Ports: 3/8" NPT
  • Certifications: UL Recognized, NSF and CSA Listed
