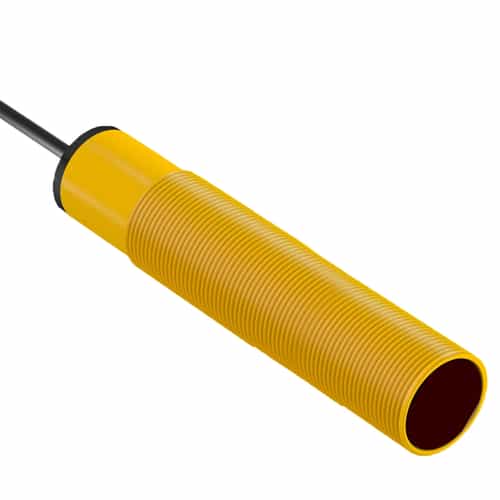

Banner Sensors S18RW3R W/30 Epoxy Encapsulated Barrel-Mounted Sensor - S18 Series, 20 Meter Sensing Distance, 20-250 VAC

Brand:
Mfr. Model #:
S18RW3R W/30
KR Part #:
BPS1275
Weight:
1.50 lbs
Usually Ships in 4 Weeks
MSRP
$167.20
Now Only!
$119.43
A barrel mounted sensor for car washes. Barrel diameter measure 18 millimeters. Compatible with 20-250 VAC electric power connections.



Product Description

18 mm Infrared LED Sensor

The Banner Sensors S18RW3R W/30 is a barrel mounted sensor from the S18 series. It features a sensing distance of 65 feet (20 meters). Compatible with 20-250 VAC electrical connections and includes a 29 foot (9 meter) cable. Rated for NEMA 6P standards meaning the sensor is totally protected against dust and resistant to water entry from rain and washdowns.

Specifications:
  • Sensing Beam: Infrared LED
  • Cable Length (m): 9
  • Power: AC
  • Sensing Mode (General): Opposed
  • Sensing Mode (Detailed): Receiver
  • Housing Style: Barrel
  • Primary Housing Material: Thermoplastic
  • Input/Output: Solid-State AC Switch
  • Max Sensing Distance (mm): 20000
  • Outputs Solid-State AC Switch
  • Power Supply/Supply Voltage: 20-250 V ac
  • Connection: Cable
  • Quick Disconnect Type: No QD
  • Operation: Dark Operate
  • Min Op. Temp. (°C): -40
  • Max Op. Temp. (°C): 70
  • Output response time (ms): 16 ON/8 OFF
  • Special Feature: Intrinsically Safe: No
  • Special Feature: Remote Teach: No
  • Special Feature: Water Detection: No
  • Delay at Power-up (ms): 100
  • Repeatability (µs): 2000
  • Number of Pins: 3
  • NEMA Rating: NEMA 6P
  • IP Rating: IP67, IP69
  • Max Op. Relative Humidity [%]: 90% @ 50°C
  • Lens Material: Polycarbonate
  • Adjustments: N/A
  • Barrel Diameter (mm): 18
  • Indicator: LEDs
  • Opposed Mode Emitter/Receiver: Receiver
  • Washdown Rated: Yes
  • Timing (Hold/Delay): No
  • Ecolab Certified: Yes
  • Encapsulated: Yes
  • Hazardous Area: No
  • Audible: No
  • Chemical Resistant: No
  • Quick Disconnect: No
  • Device Net: No
  • IO Link: No
Features:
  • Exit Verification (In-Bay Automatic/Rollover): Verifies that vehicle has exited car wash. Signals dryers to turn off. Prompts entry doors to open and admit next vehicle.
  • Teller/Coin Box and Menu Selection (In-Bay Automatic/Rollover): "Wakes up" teller. Doors open when correct code is entered, and previous vehicle has exited bay. Verifies that vehicle has departed coin box area.
  • Undercarriage Wash Trigger (In-Bay Automatic/Rollover and Conveyorized Tunnel): Detects presence of a vehicle while it is in the undercarriage wash zone. Signals the pumps to start/stop undercarriage wash.
  • Anti-Collision (Conveyorized Tunnel): Verifies that prior vehicle has exited car wash. Allows conveyor to "eject" car from system to exit the wash.
