Thermoplastic Sensor

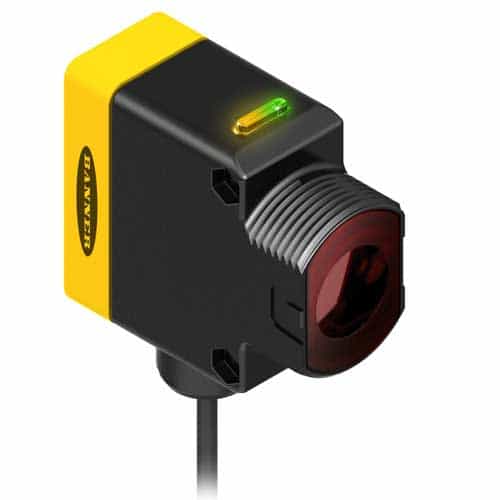

The QS303E W/30 sensor features a compact thermoplastic housing. Sensor reaches a maximum sensing distance 200 feet. Engineered to meet NEMA 6P (IP67) ratings making this sensor an excellent choice for wash-down environments. Compatible with 12-250 V DC or 24-250 V AC electrical connections. Lens is created with acrylic engineered to survive impacts, washdowns and harsh cleaning chemicals.

Specifications:

• Cable Length (m): 9

• Sensing Beam: Infrared LED

• Power: AC/DC Universal

• Sensing Mode (General) : Opposed

• Sensing Mode (Detailed): Emitter

• Housing Style: Rectangular w/M30 Mount

• Primary Housing Material: Thermoplastic

• Max Sensing Distance (mm): 60000

• Outputs: N/A

• Power Supply/Supply Voltage: 12-250 V dc or 24-250 V ac

• Connection: Cable

• Quick Disconnect Type: No QD

• Min Op. Temp. (°C): -20

• Operation: N/A

• Max Op. Temp. (°C): 70

• Output response time (ms): 15

• Special Feature: Intrinsically Safe: No

• Special Feature: Remote Teach: No

• Special Feature: Water Detection: No

• Delay at Power-up (ms): 100

• Repeatability (µs): N/A

• Number of Pins: 2

• IP Rating: IP67

• NEMA Rating: NEMA 6

• Max Op. Relative Humidity [%]: 95% @ 50°C

• Lens Material: Acrylic

• Adjustments: N/A

• Barrel Diameter (mm): 30

• Indicator: LEDs

• Opposed Mode Emitter/Receiver: Emitter

• Feature: Timing (Hold/Delay): No

• Feature: Encapsulated: No

• Feature: Hazardous Area: No

• Feature: Audible: No

• Feature: Chemical Resistant: No

• DeviceNet: No

• IO Link: No


Applications:

• Vehicle Profiling (In-Bay Automatic/Rollover):  Accurately determines vehicle front and back bumper position. Allows gantry to travel minimal distance to ensure a quick, close wash. Helps prevent vehicle damage. Most powerful "burn-thru" sensor, without requiring an external amplifier.

• Entry/Exit Doors (In-Bay Automatic/Rollover and Conveyorized Tunnel): Verifies that a vehicle has either entered or exited the car wash. Prevents doors from closing on the vehicle. Dual sensors may be used: one inside and one outside.

• Soap and Rinse Activation (Conveyorized Tunnel): Detects front of vehicle and triggers soap/foam jets and triggers rinse cycle. Remains active while vehicle is blocking the sensor.

• Dryer Activation (Conveyorized Tunnel): Triggers dryers to turn on and off. May control dryer distance from vehicle.
