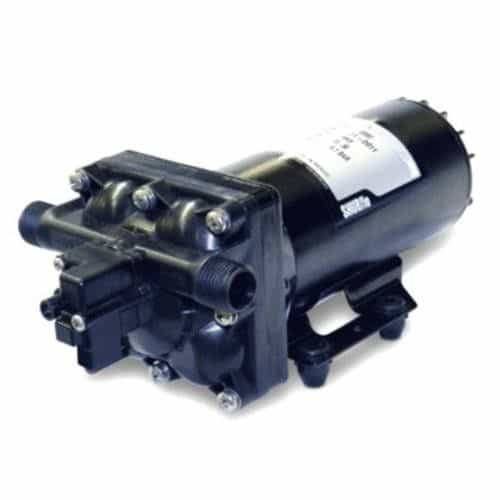

Shurflo 5050-2301-C011 Fresh Water Diaphragm Pump - 5GPM 12V

Brand:
Mfr. Model #:
5050-2301-C011
KR Part #:
SF50502301C011
Weight:
8.50 lbs
GTIN:
752324012435
Usually Ships in 2 Weeks
MSRP
$337.07
Now Only!
$224.72
Self-priming 4-chamber. Thermally protected and sealed. Use in pressurized water systems.



Technical Specifications

Max GPM: 5
Voltage AC: 12

Product Description

Self-Priming Pump

Multi-fixture adjustable bypass fresh water installations. Other uses may include pressurized water systems in cabins and general water transfer. Benefits include a heavy-duty, thermally protected, CE compliant sealed motor, adjustable bypass and a self-priming 4-chamber design. This pump has a unique co-molded diaphragm and can run dry without damage.

Specifications:

  • 4 chamber diaphragm pump
  • Ports: 1/2"-14 NPSM Male
  • 130°F (54°C) max water temperature
  • Dry-Prime: 6 feet (1.82 meters)
  • Run Dry: Yes
  • Inlet Pressure: 30 PSI max (2.06 Bar)
  • 12 volt DC permanent magnet, intermittent duty motor
  • 13 amps max
  • 20 amp recommended fuse size
  • 14 AWG copper wire leads
  • 7.9 pounds
  • Approximate Dimensions: 10" x 4" x 5"
