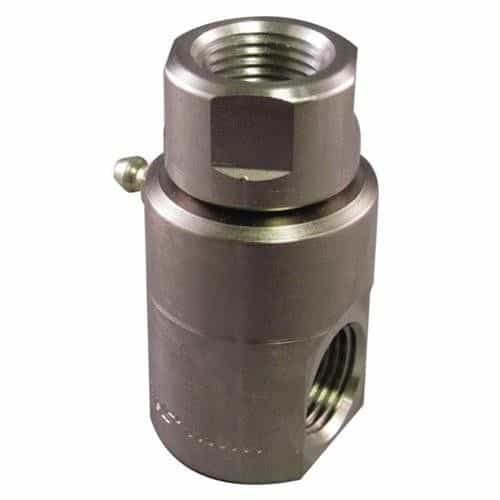

1 1/4" - 90 Degree Swivel

The Super Swivels 5054 is a 90 degree swivel designed to eliminate kinks and twisting while being able to fit in tight spaces. Made with electroless nickel to provide resistance against abrasion and corrosion. It's seal is made with AFLAS that tolerates high temperatures and is resistant to many chemicals. Connections measure 1 1/4" NPTF and 1 1/4" NPTF threading.

Specifications:

• Material: Electroless Nickel
• Design: 90 Degree
• Seal: AFLAS
• Overall Length: 4.365"
• Dimension B: 3.395"
• Dimension D Ø: 2.702"
• Wrench/Hex: 2.000"
• Port T1: 1-1/4-11-1/2 NPTF
• Stem T2: 1-1/4-11-1/2 NPTF
• SWG. Radius: 1.049"
• Maximum Pressure: 4000 PSI
• Through Hole: 1.181"

Features:

• Provide free rotation on one axis with a right-angle change of path.
• Minimal friction allows free movement of hoses and piping in fluid conducting power systems.
• Compact design fits in tight areas.
• Allows for sharp corners with reduced risk of kinks, flow restriction and free rotation.
• Ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
• Pass-through inline design is the most standard configuration.
• Connects directly to hose lines without adapters reducing overall costs of hydraulics.
• No Kinks - No Hose Twisting.
• (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) offers better resistance to many chemicals. Tolerates high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
