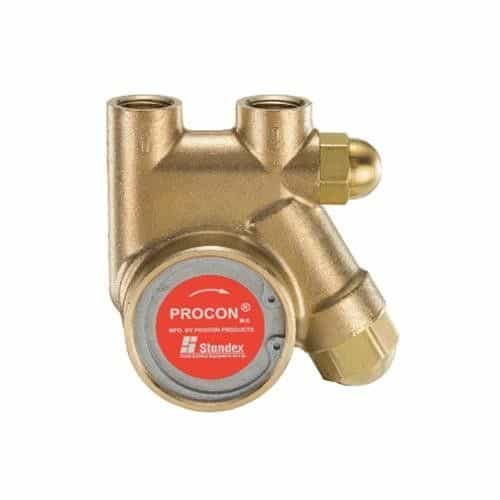

Procon 101A070F11BA Series One Clamp-On Rotary Vane Brass Pump - 70 GPH
Brand:
Mfr. Model #:
101A070F11BA
KR Part #:
PPCO1308X
Weight:
2.10 lbs
Out of stock - Pre-Order Now!
IN STOCK ALTERNATIVE
Brass rotary vane pump with 3/8 inch ports and a 70 GPH maximum flow rate. Integrated strainer traps particles that could damage the pump.
Technical Specifications
Inlet Port: 3/8 inch
Max GPM: 70
Max PSI: 250
Product Description
70 GPH Positive Displacement Pump
The Procon 101A070F11BA is a positive displacement rotary vane pump made with brass. This low-vibration pump boasts an integral inlet strainer with a 100 mesh screen that traps particles that can cause damage to the pump. The strainer has a removable cap for periodic cleaning. This Procon Series 1 pump has a 70 GPH flow rate and a pressure range from 151-250 PSI.
Dimensions: 3.56" x 3.49" x 3.86"
Specifications:
- Body Material: Brass
- Capacity: 70 GPH
- Nominal Speed: 1725 RPM
- Typical Horsepower Required: .25 to .50 HP
- 151 to 250 PSI pressure range - 170 PSI default setting
- Rotation (viewed from nameplate): Clockwise
- Dry Weight: approximately 2.5 lbs.
- Self Priming (water): 6 ft. Maximum Lift
- Port Size: 3/8 NPT inlet and outlet
Details:
- Rotary vane Style
- Non-food grade, 1.5% maximum lead
- Series 1
- Integral inlet strainer
- Clamp mounting with .188" double flat drive
- FDA grade nitrile elastomer seals
- Standard clearances
- Plastic hi-temp solid valve type and configuration
Applications:
- Car wash
- Welding
- Reverse osmosis
- Pesticide systems
- Solar applications
