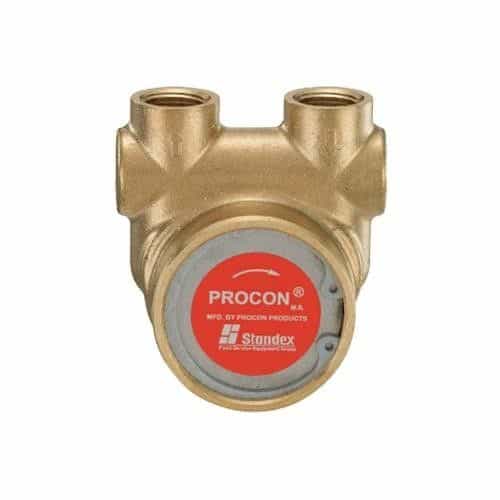

100 GPH Brass Food Grade Fluid Pump

The Procon 112A125F11XX pump is a rotary vane style pump made from brass. This low vibration pump has a 100 GPH maximum flow rate, has 3/8" inlet and outlet ports, and 250 PSI maximum discharge pressure. Procon Series 2 pumps are self-priming, designed to avoid metal-to-metal contact, and are almost entirely maintenance-free throughout their lives (other than cleaning the strainer). This pump meets NSF requirements so it can be used for food and beverage applications.

Dimensions:

• 3.56" x 3.49" x 3.86"

Specifications:

• 100 GPH flow rate
• 250 PSI maximum discharge pressure
• 1725 RPM
• Clockwise rotation (view from nameplate end)
• Self priming (water) 6' maximum lift
• 3/8" NPT inlet and outlets
• Bolt-on mounting with single flat drive
• FDA grade nitrile elastomer
• Standard clearance
• 303 stainless steel shaft
• Meets NSF standards
• No relief valve
• No setting

Possible Applications:

• Coffee/Espresso bars
• Carbonated systems
• Small car wash systems
• Welding
• Cold car circulation
• Reverse osmosis
• Pesticide systems
• Solar applications
