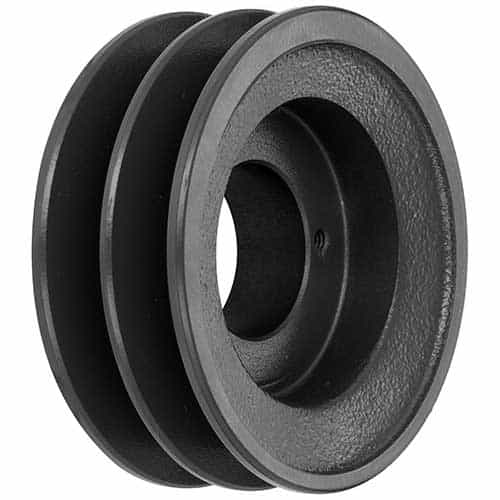

Amec 2BK47H Cast Iron Two Groove Pulley - 4.45 Inch Outer Diameter, Accepts 5L, B, BX Belts
Brand:
Mfr. Model #:
2BK47H
KR Part #:
PL0165
Weight:
3.40 lbs
Usually Ships in 2 Weeks
A double groove pulley that accepts with 5L, B, and BX belts. Cast iron construction. Outer diameter measures 4.45 inches.
Note: Keyway, belt, and bushing not included.
Product Description
B-Section Pulley
Amec's 2BK47H sheave pulley with a double groove designed for compatibility with 5L, B, and BX belts. Made with a durable cast iron construction. The pully's outer diameter measures 4.45 inches. Compatible with type H bushings.
Specifications:
- Number of Grooves: 2 Groove Sheave
- Belt Section: 5L, B, BX
- Belt Top Width: 5/8" - .660
- Diameter: 4.45" O.D.
- Bore/ Bushing: Type H
- Pitch Diameter: 4.10"
- O.L. : 1.75
- Material: Cast Iron
- Weighs: 3.40 lbs.
