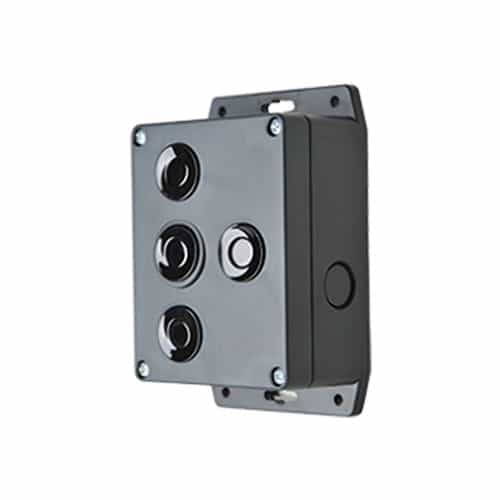

Above Ground Sensor

The USVD-4X uses ultrasonic technology to detect vehicles in drive-thru applications. Utilizes 4 ultrasonic transducers to scan for vehicles. Designed to install above-ground and does not require an in-pavement vehicle loop. Simply mount on a post or wall where the sensor is intended to be used.

Specification:

• Power: 12-24 VDC/AC
• Sensing Elements: 4 Ultrasonic In TPA Configuration
• Standby Current: 60ma
• Operating Current: 60ma
• Operating Range: 1- 5 Ft
• Response Time: 2.0 Seconds
• Power Indicator/No Vehicle: Green LED
• Object in Range: Flashing Green LED On Each Input, Continuous LED On DETECT
• Relay Output Configuration: Form C (2 SPDT)
• Relay Contact Rating: 1A @ 24VDC
• Operating Temperature: -40° to 182°F
• Connection: 10 position terminal block
• Mechanical protection: NEMA 4X
• Housing Material: ABS plastic
• Dimensions: (L x W x H) 3.6" x 2.3" x 5.7"
• Weight: 0.6 lbs.

Features:

• Ideal for car washes, parking lots, banks, fast food restaurants and other businesses with a vehicle drive-through feature
• Installs above ground versus costlier in-pavement vehicle loop detectors
• Triangular Planar Array (TPA) technology
• Auxiliary, relay, settings for pulse on entry, exit or both
• Installs easily above ground
• Reduces cost
• Streamlines operations
• Robust design

Applications:

• Fast Food
• Banking
• Pharmacies
• Car Washes
• Parking
